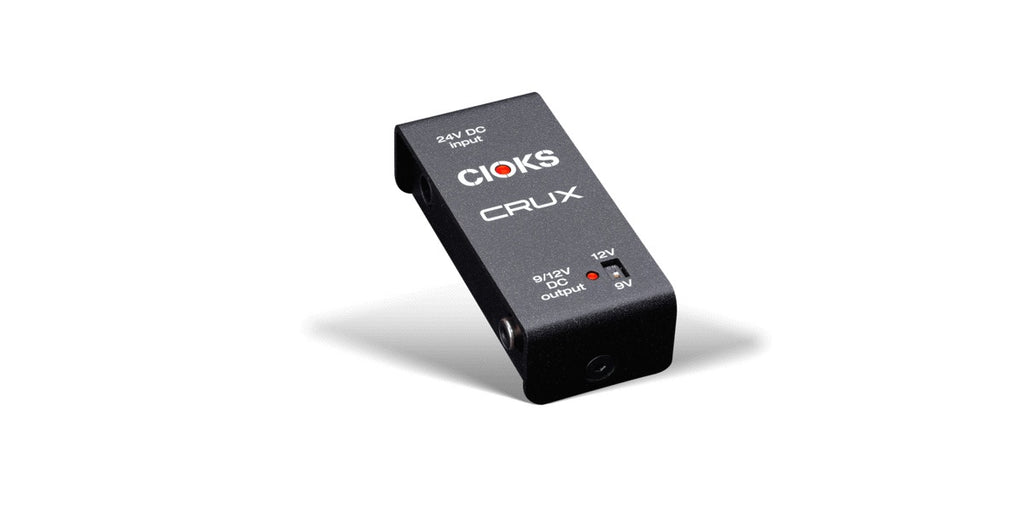

CIOKS CRUX
CIOKS CRUX is an add-on for CIOKS DC7 for use with high-power 9V or 12V multi-effects pedals including Neural DSP Quad Cortex and Line 6 HX-series pedals. Connect CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, and connect a CIOKS Flex cable from CRUX to the multi-effects pedal.
Using CRUX frees DC7 outlets that would otherwise be required to power these devices, allowing additional pedals to be connected alongside a multi-effects unit and simplifying pedalboard setup.
Features
• Converts the 24V auxiliary outlet on DC7 into a 9V or 12V outlet with total power of 24W
• Powers Neural DSP Quad Cortex while saving DC7 outlets
• Overload and short circuit protected outlet
• Overvoltage protection
• 1 inch profile 25.4 mm matching CIOKS DC7
• Compatible with CIOKS MiniGRIP for drill free mounting underneath Pedaltrain boards sold separately
• One 24V DC Link cable included
• Two Flex cables included
• Designed in Denmark and assembled in Poland
• 5 year worldwide warranty
Specifications
• Input 24V DC
• Output 9V DC 2700 mA or 12V DC 2000 mA
• Total Output Power Maximum 24W
Whats in the Box
• Flex 1050 Type 1 5.5/2.1 mm DC plug centre negative L shape 30 cm black
• Flex 3050 Type 3 5.5/2.5 mm DC plug centre negative L shape 50 cm yellow
• L2415 DC Link cable EIAJ to EIAJ 15 cm black
• CRUX adapter
• L2415 DC Link cable
• Flex cables 1050 and 3050
• Mounting hardware for Pedaltrain and Templeaudio boards
• Product manual
• Flex guide
• CIOKS sticker sheet
