This listing is for an open box item. All of the original contents, packaging, and warranty are included. The packaging has been opened and may show wear, however, the contents are in new condition.

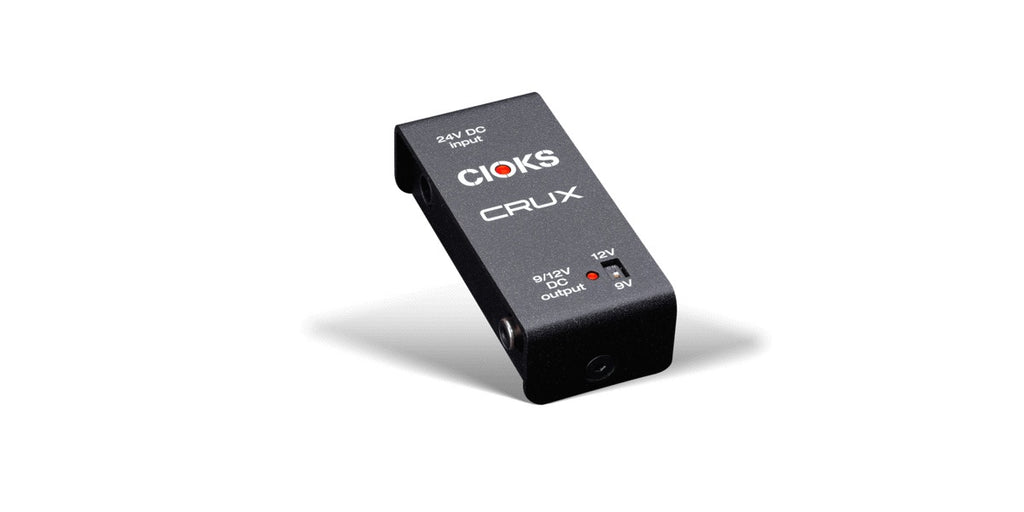

CIOKS CRUX
CIOKS CRUX is an add-on for CIOKS DC7 for use with high-power 9V or 12V multi-effects pedals including Neural DSP Quad Cortex and Line 6 HX-series pedals. Connect CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, and connect a CIOKS Flex cable from CRUX to the multi-effects pedal.
Using CRUX frees DC7 outlets that would otherwise be required to power these devices, allowing additional pedals to be connected alongside a multi-effects unit and simplifying pedalboard setup.
Features
• Converts the 24V auxiliary outlet on DC7 into a 9V or 12V outlet with total power of 24W
• Powers Neural DSP Quad Cortex while saving DC7 outlets
• Overload and short circuit protected outlet
• Overvoltage protection
• 1 inch profile 25.4 mm matching CIOKS DC7
• Compatible with CIOKS MiniGRIP for drill free mounting underneath Pedaltrain boards sold separately
• One 24V DC Link cable included
• Two Flex cables included
• Designed in Denmark and assembled in Poland
• 5 year worldwide warranty
Specifications
• Input 24V DC
• Output 9V DC 2700 mA or 12V DC 2000 mA
• Total Output Power Maximum 24W
Whats in the Box
• Flex 1050 Type 1 5.5/2.1 mm DC plug centre negative L shape 30 cm black
• Flex 3050 Type 3 5.5/2.5 mm DC plug centre negative L shape 50 cm yellow
• L2415 DC Link cable EIAJ to EIAJ 15 cm black
• CRUX adapter
• L2415 DC Link cable
• Flex cables 1050 and 3050
• Mounting hardware for Pedaltrain and Templeaudio boards
• Product manual
• Flex guide
• CIOKS sticker sheet
