Universal Audio Volt 2 Gen 2 - 2-in / 4-out USB Audio Interface with Onboard Tone Shaping

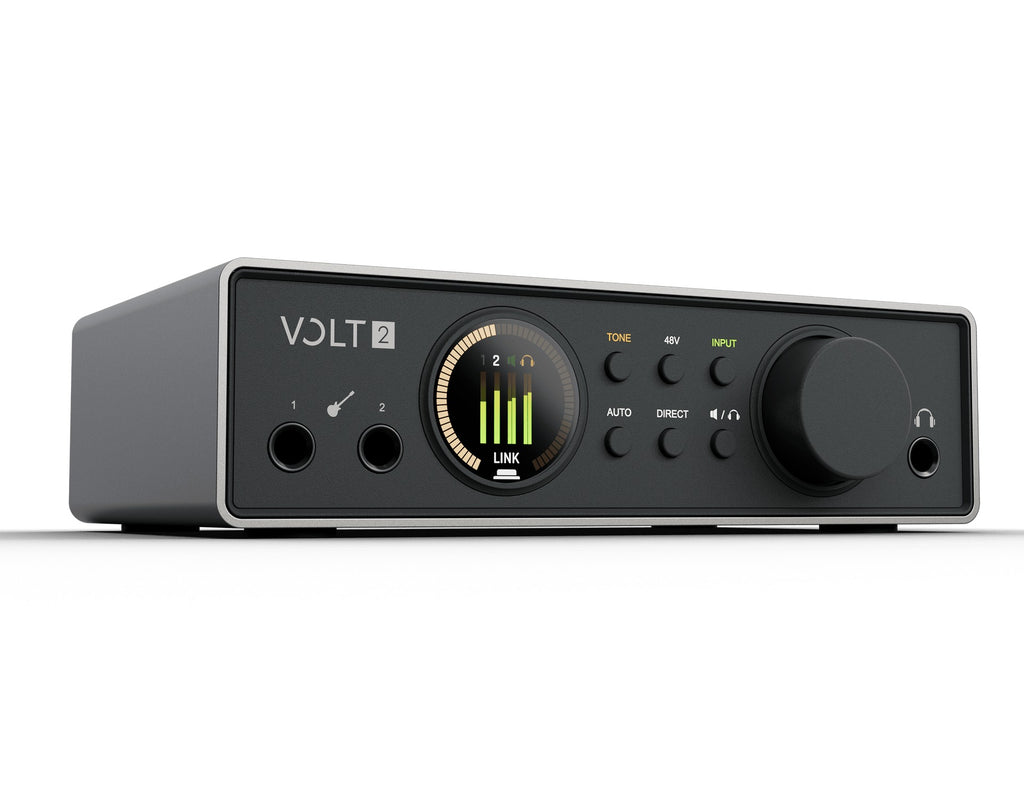

Volt 2 is a next-generation mobile USB audio interface with two onboard Tone Shaping Preamps and a full-color Smart Display, giving music creators the sound of a pro studio with easy, hands-on control. Built by the same team behind legendary Apollo interfaces, Volt 2 makes recording effortless on Mac, Windows, iPad, or iPhone in minutes.
Auto-Gain sets recording levels in seconds and Clip Protection catches unexpected peaks, while three mic preamp modes -- Warmth, Focus, and Shine -- add Tube, Solid State, and British Class-A tone to every take, backed by 32-bit / 192 kHz converters.

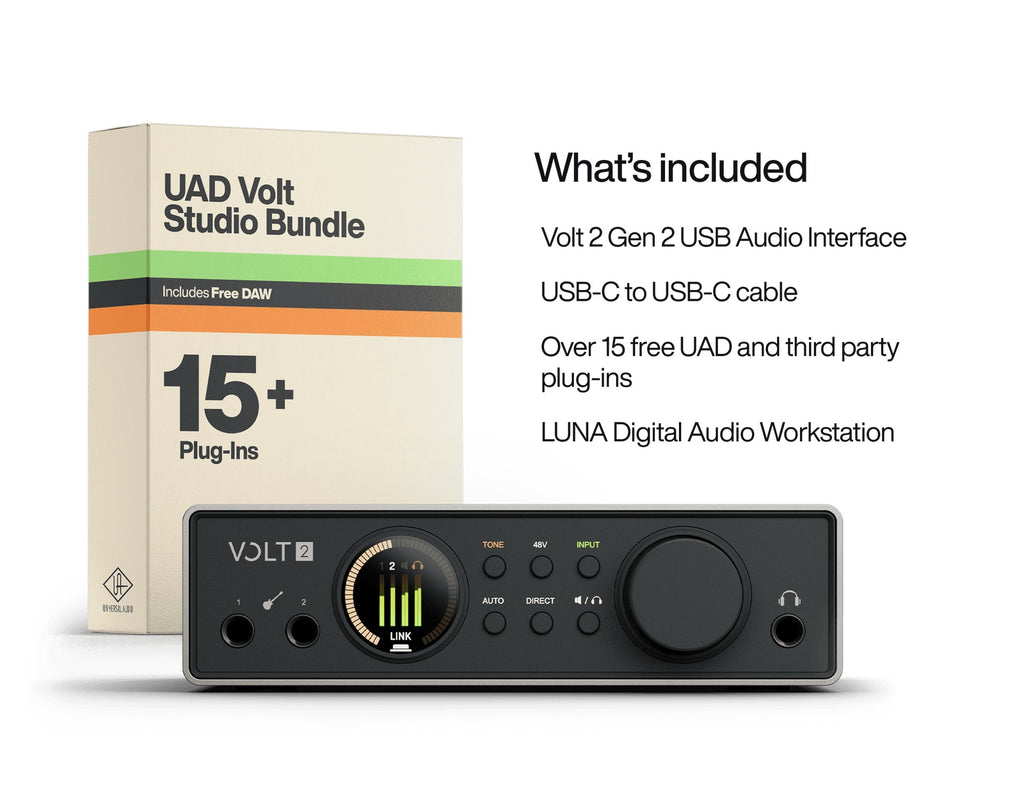

Volt 2 is bus-powered, USB class-compliant, and includes a built-in loopback for podcasting and streaming, plus over 15 UAD plug-ins and instruments and the LUNA Digital Audio Workstation.
Features
- 2-in / 4-out USB audio interface with professional 32-bit / 192 kHz audio conversion
- Two Tone Shaping Preamps with 60 dB gain and three character modes -- Warmth, Focus, and Shine

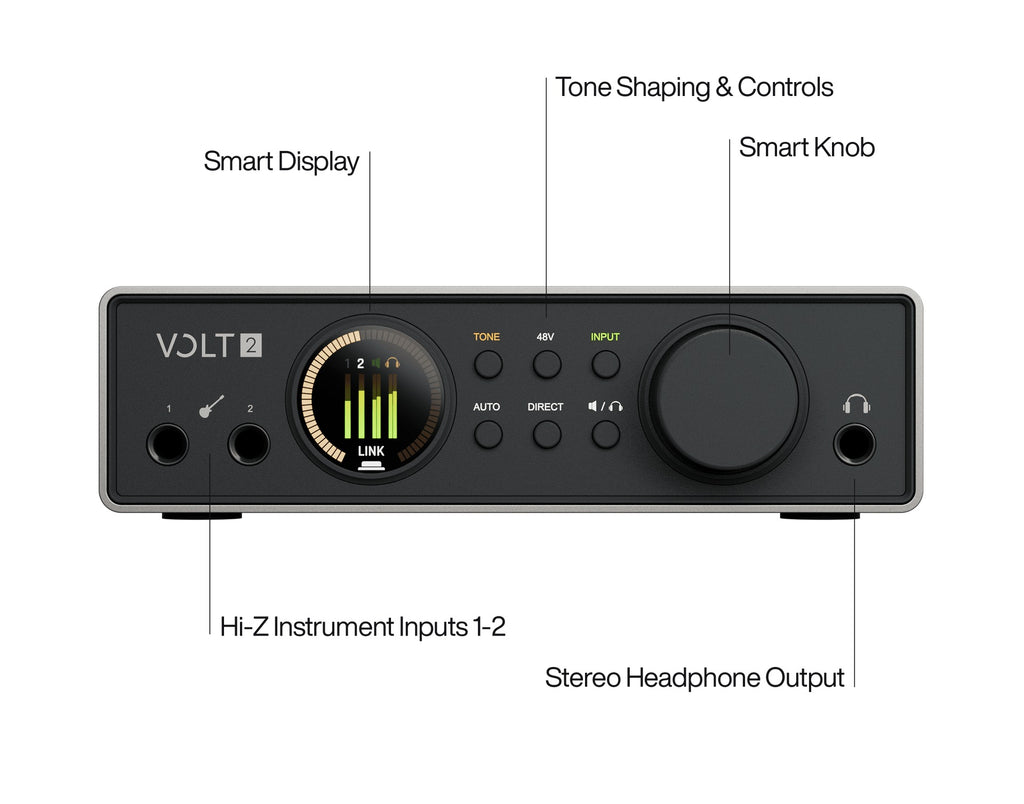

- Two mic / line inputs with two front-panel Hi-Z instrument inputs for vocals and instruments together, or in stereo
- Full-color Smart Display for bright, at-a-glance visual feedback of inputs, levels, and settings
- Auto-Gain and Clip Protection for perfect recording levels, every time
- Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
- Built-in loopback for podcasting, streaming and content creation
- Independent 48V phantom power per channel for condenser microphones
- USB bus-powered and class-compliant for Mac, Windows, iPad, and iPhone
- Stylish, rugged construction built to withstand years of use

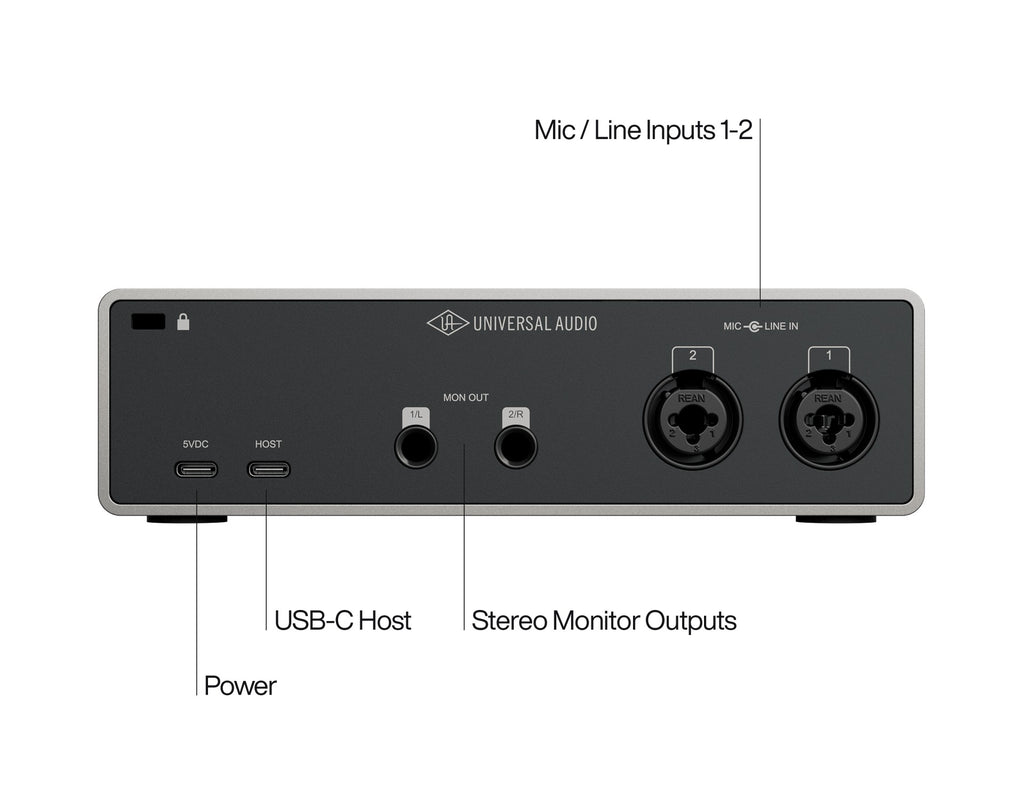

I/O
- Simultaneous I/O: 2-in / 4-out
- Microphone Preamps: Two, 60 dB available gain with Tone Shaping
- Monitor Outputs: One stereo
- Headphone Output: One stereo (one cue mix)
- USB: One USB 2.0 Host port, one USB External Power input port (5VDC @ 1A min), USB Type-C connectors
A/D - D/A Conversion
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Bit Depth: 32-bit
Power
- USB Bus-Powered: Yes
- Power Consumption (@5VDC): 3.4W typical, 4.9W maximum
Analog I/O
- Instrument Inputs 1-2: 1 Megohm input impedance, 60 dB digitally-controlled gain, 1/4" TS unbalanced, 116 dB dynamic range
- Microphone Inputs 1-2: 2 Kilohm input impedance, 60 dB gain, +48V switchable per channel, XLR combo jack, 119 dB dynamic range
- Line Inputs 1-2: 10 Kilohm input impedance, 60 dB gain, 1/4" combo jack, 119 dB dynamic range
- Monitor Outputs: 1/4" TRS balanced (DC coupled), 126 dB dynamic range
- Headphone Output: 1/4" TRS stereo unbalanced (DC coupled), 45mW into 32ohm
System Requirements
- macOS & Windows: Available USB 2.0 (or higher) port; USB cable (included); Intel, AMD, or Apple silicon processor; Windows 10 64-bit or newer; macOS 12 Monterey or newer; internet connection for software downloads
- iPad & iPhone: iPadOS / iOS 16 or newer
- DAW Compatibility: All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and more

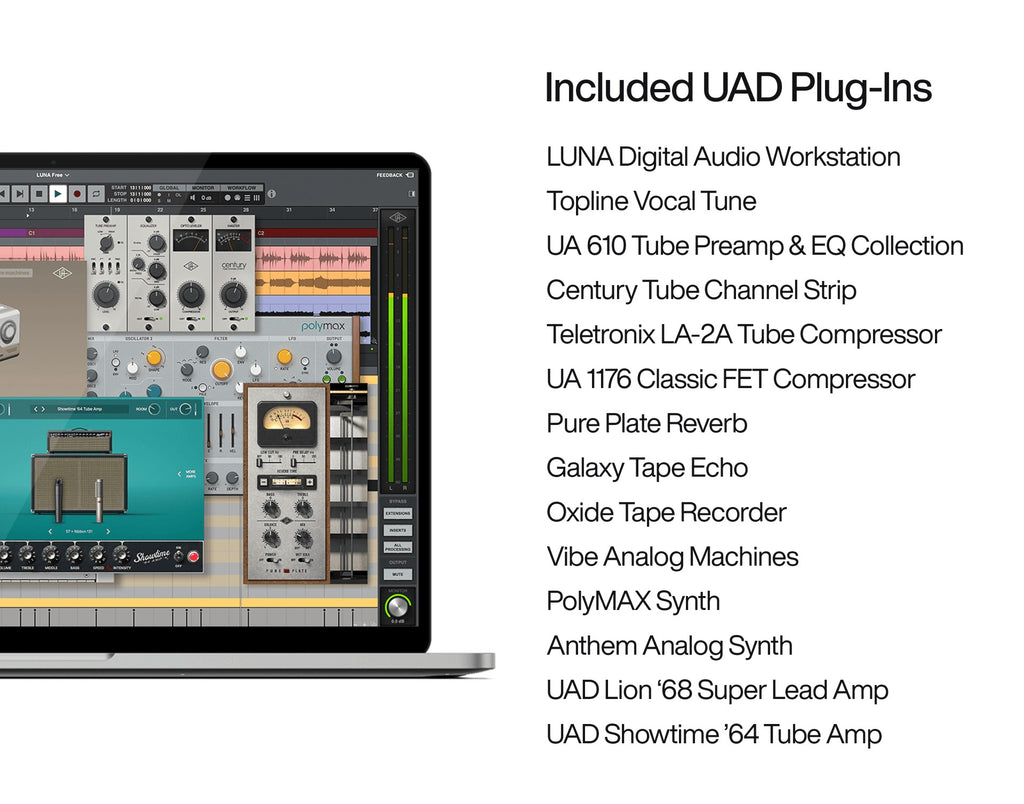

Included FREE UA Software (UAD Volt Studio Bundle + Additional Software)
- LUNA Digital Audio Workstation
- Topline Vocal Tune
- UA 610 Tube Preamp & EQ Collection
- Century Tube Channel Strip
- Teletronix LA-2A Tube Compressor
- UA 1176 Classic FET Compressor
- Pure Plate Reverb
- Galaxy Tape Echo
- Oxide Tape Recorder
- Vibe Analog Machines
- PolyMAX Synth
- Anthem Analog Synth
- UAD Lion '68 Super Lead Amp
- UAD Showtime '64 Tube Amp
- Melodyne Essential by Celemony
- Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
- Virtual Drummer DEEP by UJAM
- Virtual Bassist DANDY by UJAM
- Splice INSTRUMENT
- Prisma - Producer Lab by UVI
- FL Studio Producer Edition (3 months free)
- Access to exclusive Puremix audio education content
