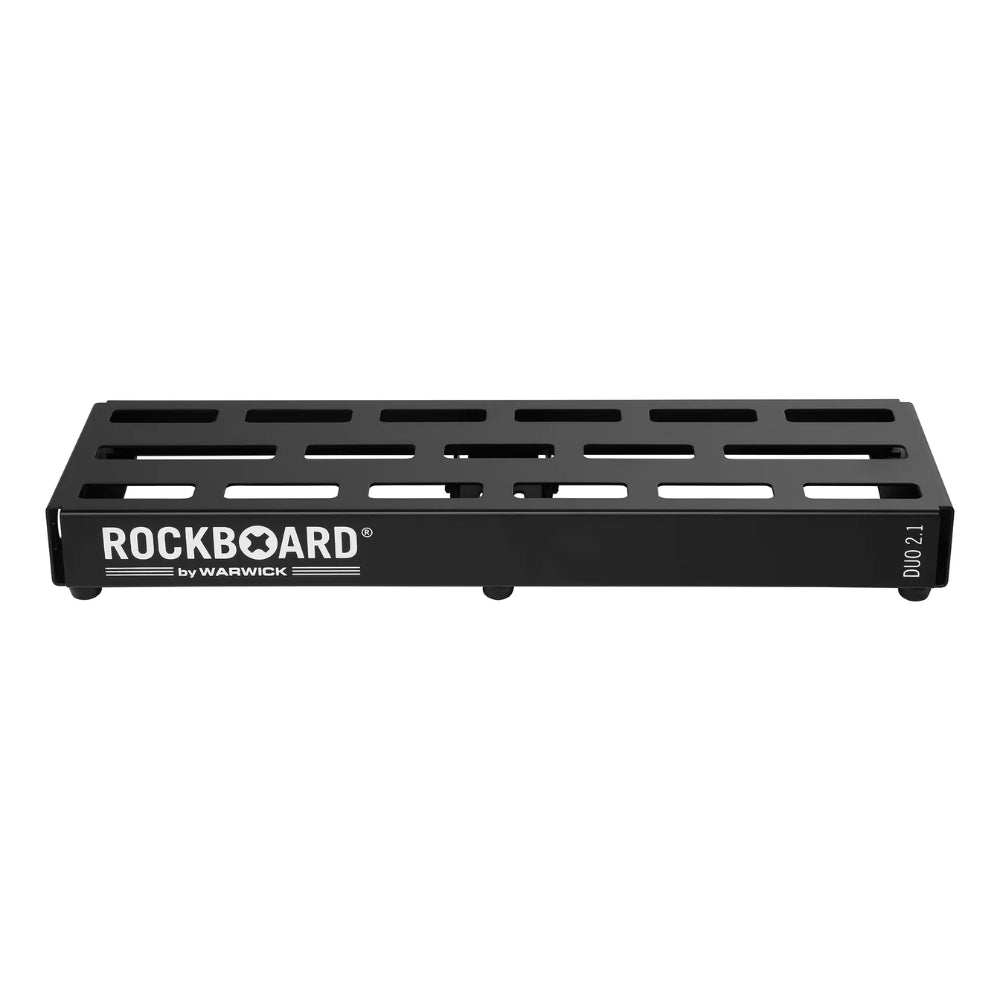

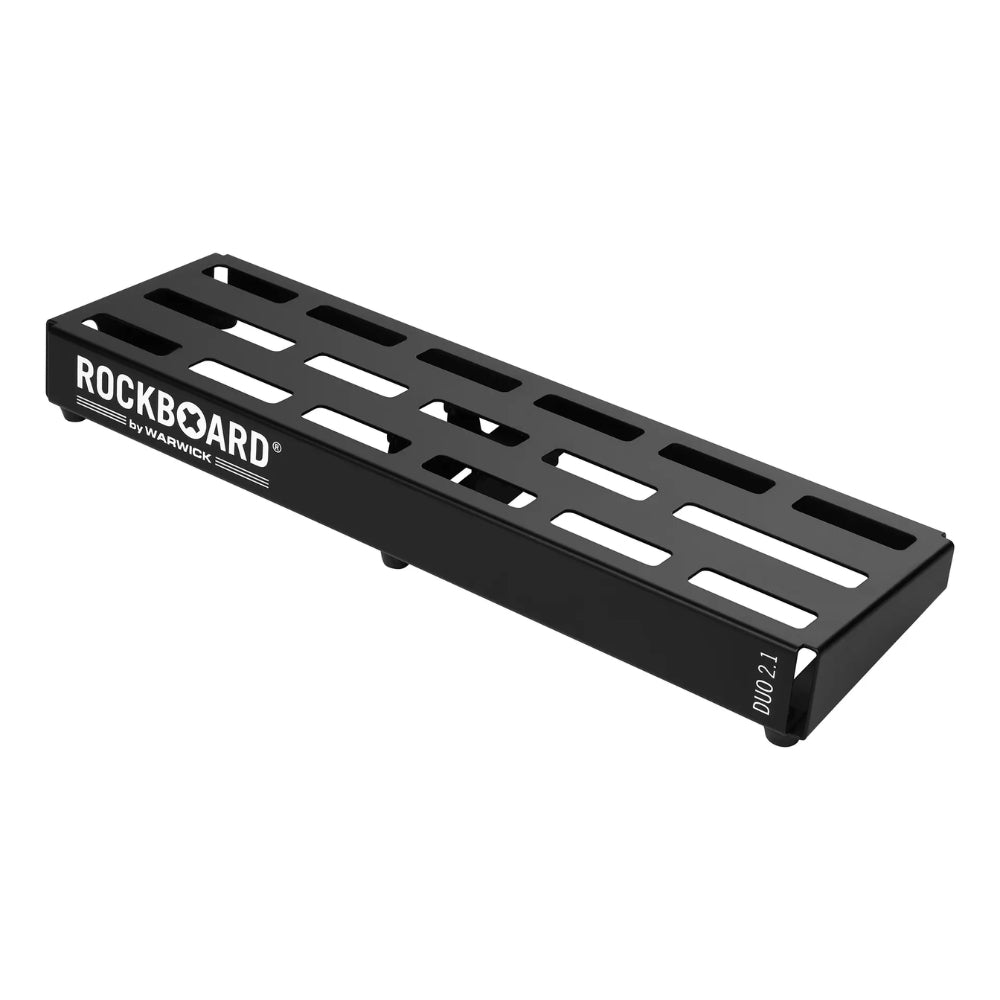

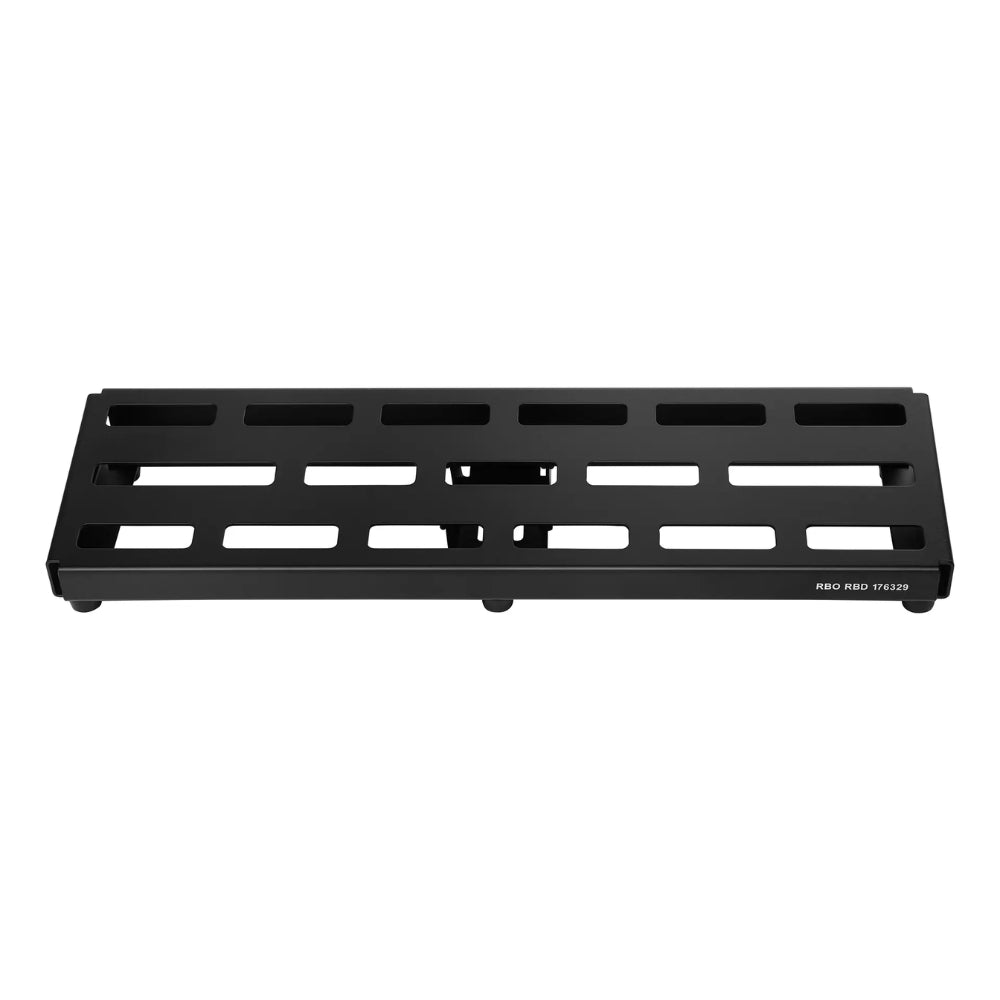

DUO 2.1 Pedalboard
For 4 to 7 pedals
Made from a single sheet of cold rolled aluminum the ingenious lightweight stiff and rugged construction features vertical support struts for added stability and has not a single welded seam. The result is a completely flat and torsion resistant surface that can be used edge to edge. The innovative slot design allows all cables to be conveniently and neatly routed under the boards surface. The precisely defined slot pattern provides a perfect fit for our innovative QuickMount system which eliminates the need for hook and loop tape. Almost all common power supplies can be mounted on the underside. A premium gig bag or sturdy flight case is included for safe transportation. Your choice.
Details at a glance
Pedalboard for effects pedals
For approx 4 to 7 effects pedals depending on size
Sturdy and light aluminum construction
Slotted design for easy pedal mounting
Mounting holes for RockBoard LED Light not included on the right side
Made from 1 cold rolled aluminum sheet
Additional U shaped support brace for added rigidity
10 degrees angled and absolutely plain board surface no weld seams
Robust black powder coated surface
Width 470 mm 18 1/2
Depth 142 mm 5 19/32
Height incl rubber feet 35 to 58 mm 1 3/8 to 2 5/16
Weight 0.7 kg 1.6 lbs

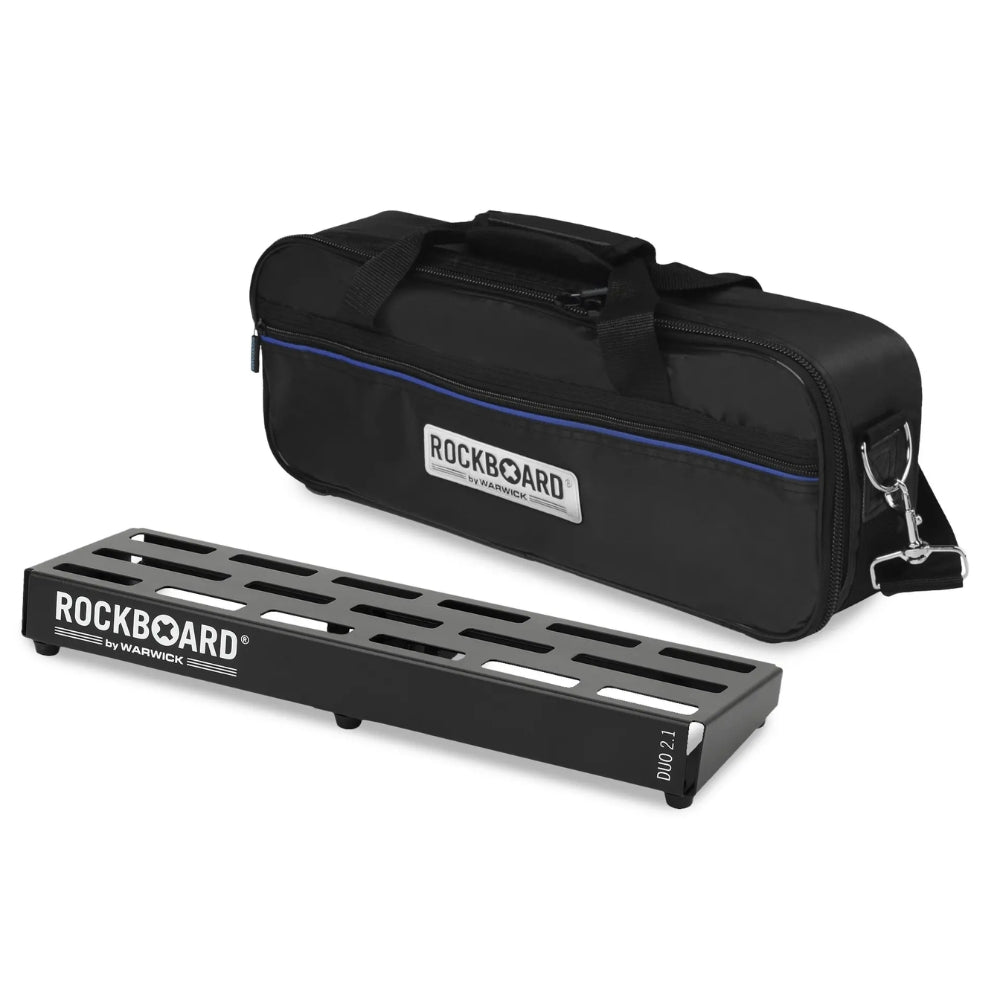

Including gig bag
Weight gig bag approx 0.5 kg 1.0 lbs
Interior dimensions gig bag L x W x D 490 x 180 x 100 mm 19 5/16 x 7 1/16 x 3 15/16
Including self adhesive hook 50 mm 1 15/16 wide and loop tape 25 mm 1 wide and cable ties
