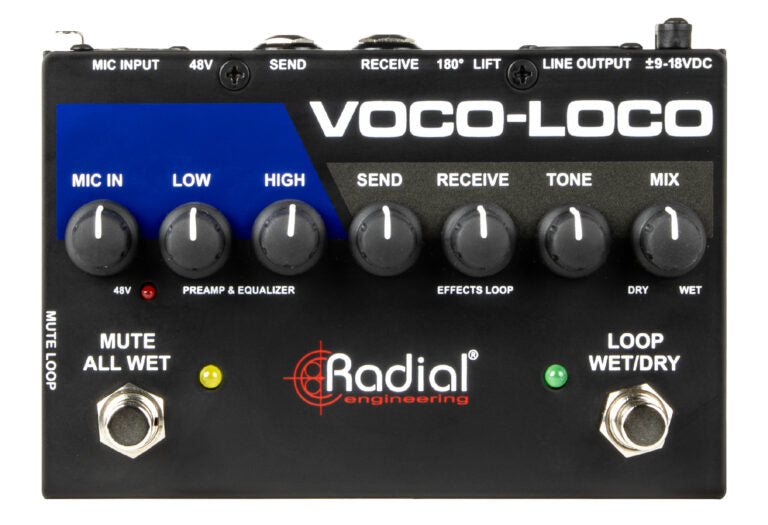

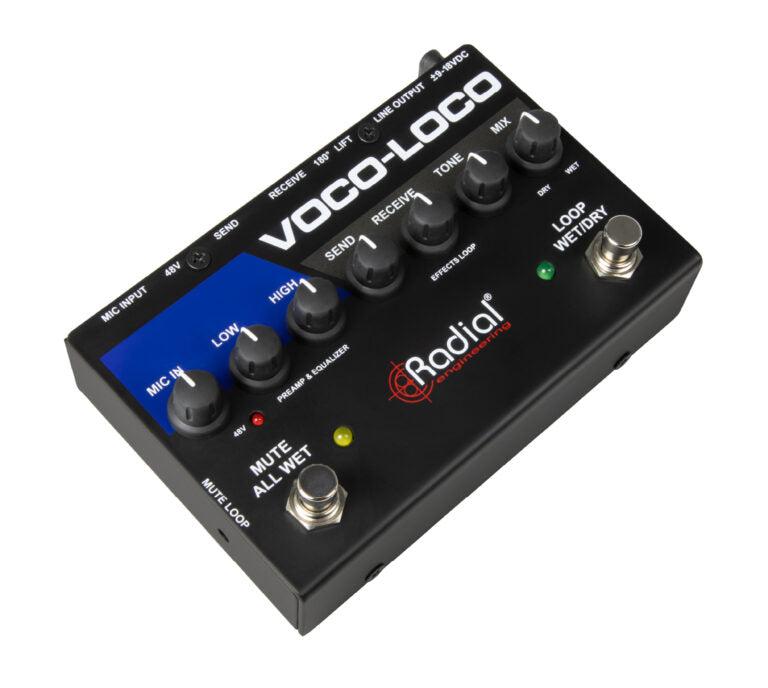

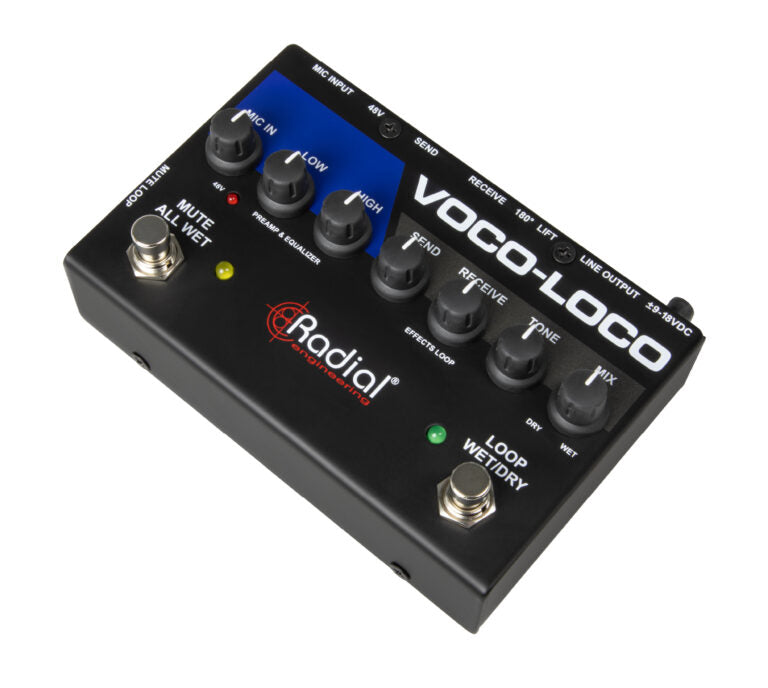

Voco-Loco Mk2
The Voco-Loco Mk2 is an updated version of the original Voco-Loco foot-controlled microphone preamp and effects loop switcher that enables a vocalist or acoustic instrumentalist to incorporate guitar effects pedals into their signal path. Boasting a new look, additional gain, and a locking XLR connector for more secure connections, the Voco-Loco Mk2 also features more robust phantom power handling to deal with even the most demanding condenser mics. The Voco-Loco Mk2 can be powered by 9V and 18V power supplies, but still ships with its own 15V PSU.
- Add guitar effects pedals to vocal or instrument mics.
- Create exciting and unique effects as you perform
- Turn on multiple effects with one footswitch
- Works with dynamic and condenser microphones
Connect any mic to your guitar pedals
Just like the original device, the Voco-Loco Mk2 combines a microphone preamp with a guitar pedal effects loop, allowing a lead vocalist, sax or trumpet player to add guitar pedals to their audio signal path just like an electric guitarist adds effects for soloing. Simply plug your mic into the Voco-Loco Mk2 via the device’s locking XLR input, connect your effects pedals using standard ¼" guitar cables, and then send the output from the Voco-Loco Mk2 to the input on your mixer. With the touch of a footswitch, this lets you add your favorite delay, reverb, distortion, or wah-wah to any mic'd up instrument or vocal - the options are only limited by your imagination.
Specifications
| Audio circuit type: |
Integrated Op-Amp with Class A FET input circuit |
| Frequency response: |
20Hz ~ 20kHz |
| Dynamic range: |
100dB |
| Gain: |
52dB |
| Clip Level: |
+15dBu |
| Total harmonic distortion: |
<0.005% |
| Intermodulation Distortion: |
<0.005% |
| Phase Deviation: |
8° @50Hz |
| Input Impedance: |
10K-Ohms, 100K (FX Loop) |
| Output Impedance: |
300 Ohms, 3000 Ohms (FX Loop) |
| Common Mode Rejection Ratio: |
-73dB @55Hz |
| Equivalent Input Noise: |
-120dBu |
| Noise Floor: |
-85dBu |
| Maximum Input: |
+10dB |
