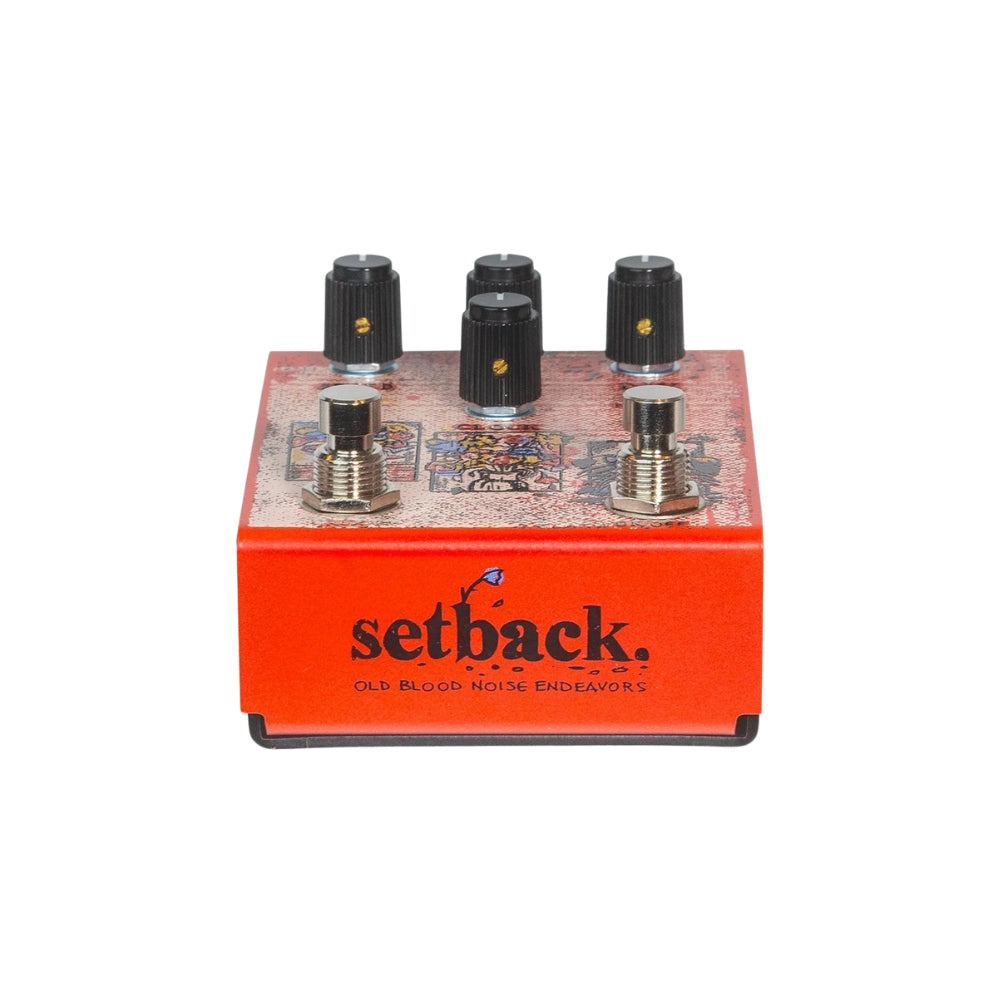

Setback Reverse
Setback is a reverse delay pedal. In the past, we've made what we like to call textural reverse pedals, a lineage that goes from Rever to Minim to BL-44 and a little bit into Parting. With Setback, we wanted to create our ideal reverse: something that can be textural and off on its own timing or totally tempo synced; gritty and characterful or clean and tidy; intuitive and controlled and yet fun and surprising. And we wanted to do all of that in the smallest form factor possible.
Setback has
- Stereo in and out with analog dry through
- Buffered trails or true bypass switching
- Presets
- Expression control over every knob
- MIDI control over everything in the pedal, including MIDI clock in for external syncing

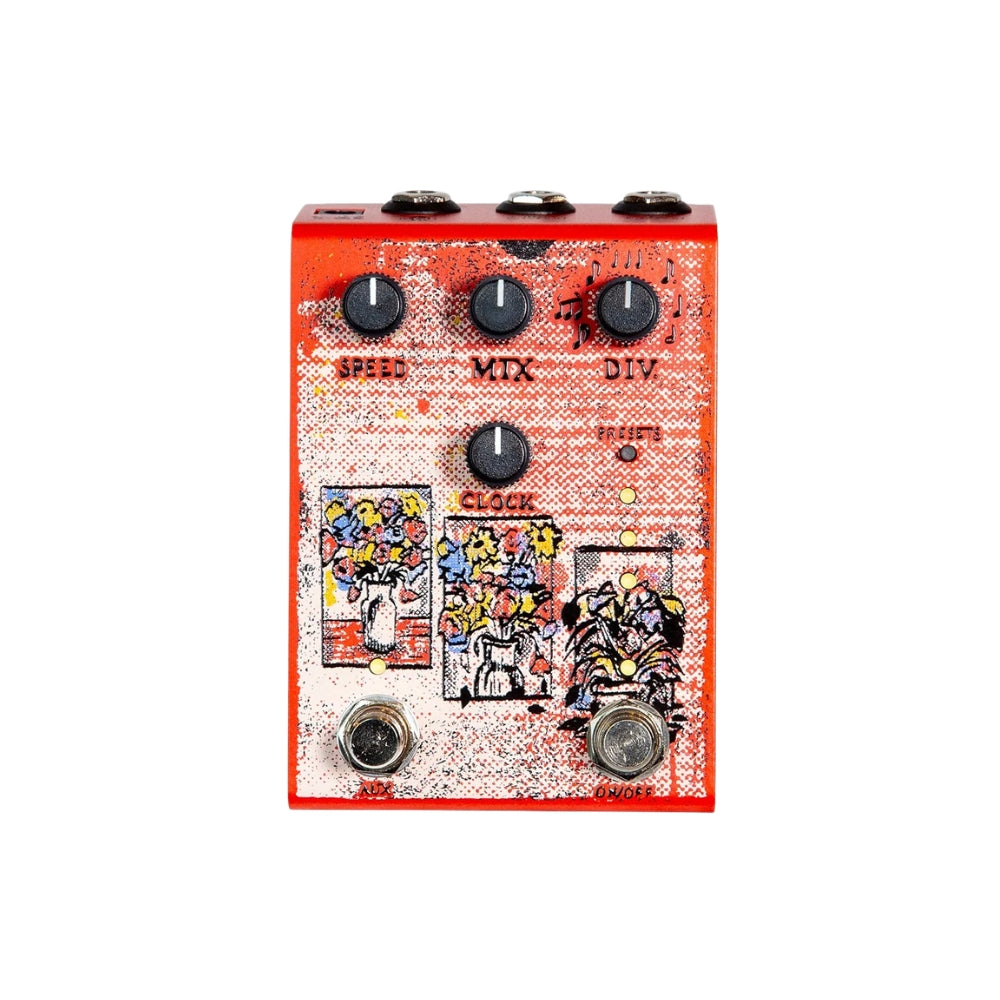

Controls
Mix
- To set the blend of wet and dry signals
Speed
- To change the playback speed of the reverse, creating pitch shifting effects
Div
- To set subdivisions of the reverse timing
Clock
- To adjust the sample rate of the reverse, changing both the delay time and the signal fidelity
Aux
- Switch for tap tempo and held feedback, or preset switching
Alt Controls
- For volume and direct time manipulation
On/Off
- Soft-touch footswitch with relay switching for minimal switch noise
Power
Requires 9V DC center negative 2.1 mm jack power supply capable of 350mA (not included).
Dimensions
- 3.25" (width) x 5" (height) x 2" (depth)
The art of Setback is by John Salame.
