The most powerful floorboard amp modeler on the planet
Quad Cortex is the most powerful floorboard amp modeler on the planet. With a total of 6 cores, this ludicrous amount of processing capacity provides limitless sound design possibilities. Want to run four amplifier models, stereo reverbs, and a plethora of other effects simultaneously? Quad Cortex won’t even break a sweat.
Neural Capture
Capture, share and download your favorite rigs’ sounds. Equipped with our unique biomimetic AI technology, Quad Cortex can learn and replicate the sonic characteristics of any physical amplifier, overdrive, and cabinet with unprecedented accuracy. Unlike any other, our sophisticated neural network algorithm perceives sound akin to human perception, making it the most natural-sounding capture solution on the planet. We are collaborating with some of the best producers and sound designers to provide an ever-growing collection of free rig captures in addition to our full-circuit models.
We figured out a better way to do modelers

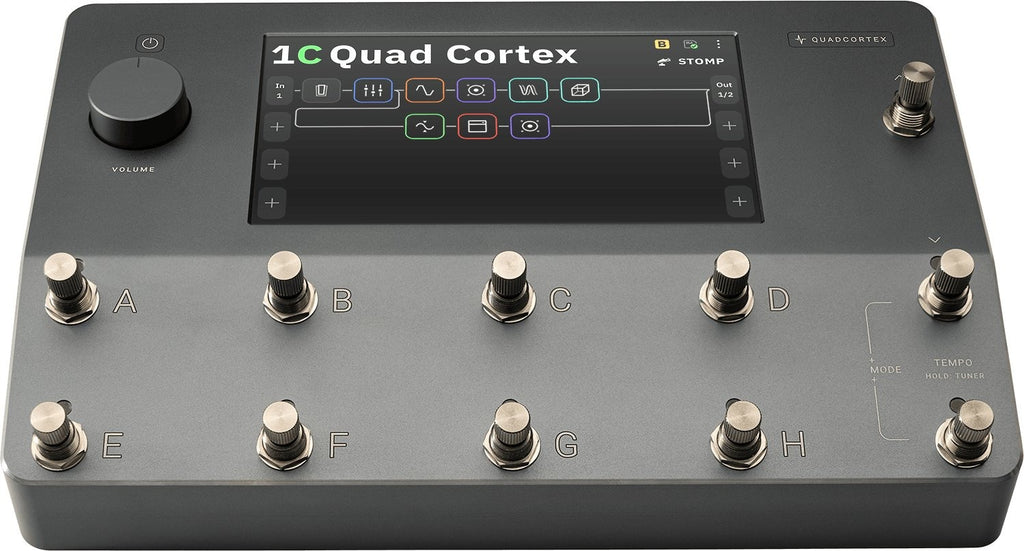

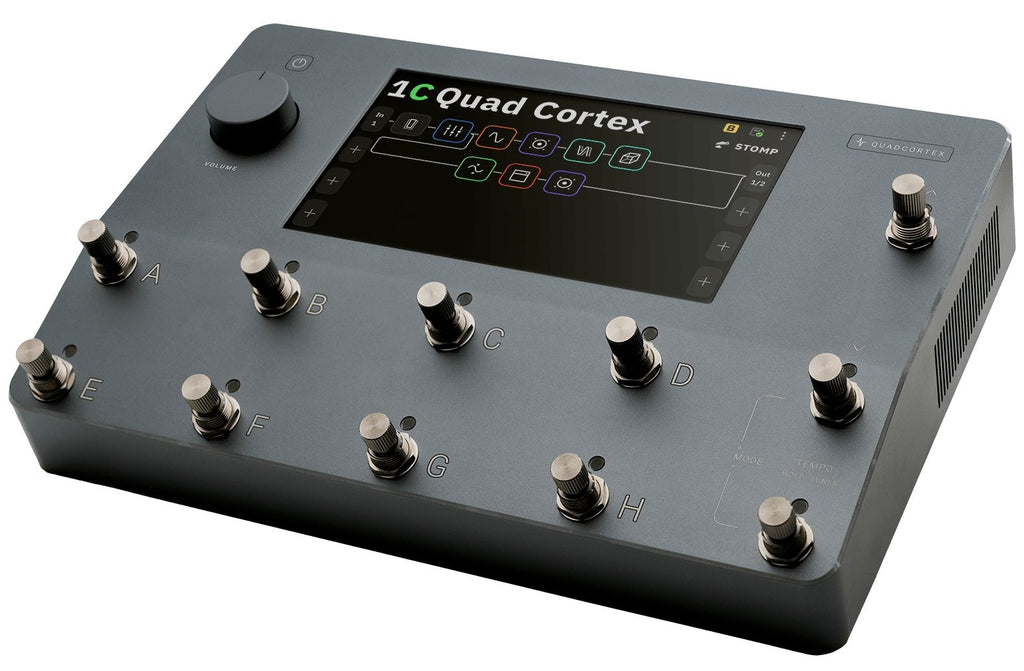

With its massive 7” multi-touch display, Quad Cortex is unbelievably easy to use. Effortlessly create even the most complex signal paths.
An ever-expanding collection of guitar and bass algorithms:
Unbelievably Compact

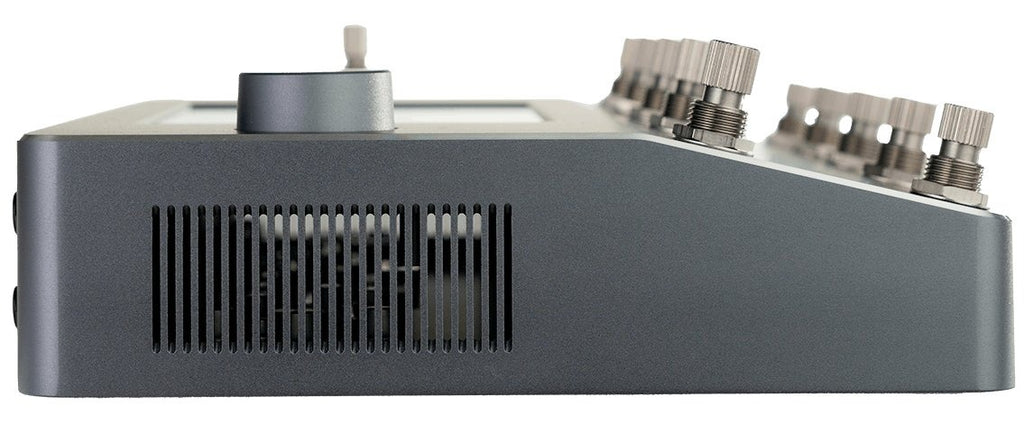

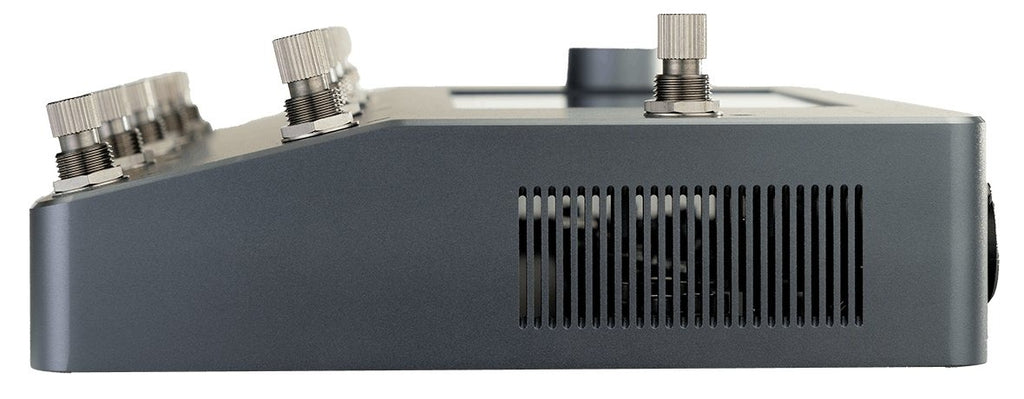

Using advanced mechanical design and manufacturing techniques, we managed to not only build the most powerful floor modeler/multi-effects processor on the planet, we also managed to pack it all in an extremely compact format.
Dimensions:
Weight:
Inputs & Outputs:
-
Dual Combo Inputs: TS, TRS, and XLR, variable impedance and level controls, built-in microphone preamps, and phantom power supplies
-
Dual Effects-Loops: Ideal for embedding external mono or stereo effects into your signal chain, as well as additional input/output jacks
-
1/4” Output Jacks: Two mono, balanced (TRS) outputs provide pristine sound quality and optimal noise performance
-
XLR Output Jacks: Two mono, balanced XLR output jacks
-
Headphone Output: Ideal for quiet practicing
-
MIDI In, Out/Thru: Receive and send MIDI messages to automate switching and control of every parameter in Quad Cortex, as well as controlling other units
-
Dual Expression Inputs: Connect up to two expression pedals. They can be assigned to control wahs, volume, as well as pitch-shifting algorithms
-
USB: Ultra-low latency audio transmission, firmware updates, MIDI, and more
-
11 stainless steel stomp+rotary actuators allow for switching and rotational control (just like the footswitches and knobs you are used to, but unbreakable)
-
All audio connectors are Neutrik
-
Neural Capture Output
CRUX

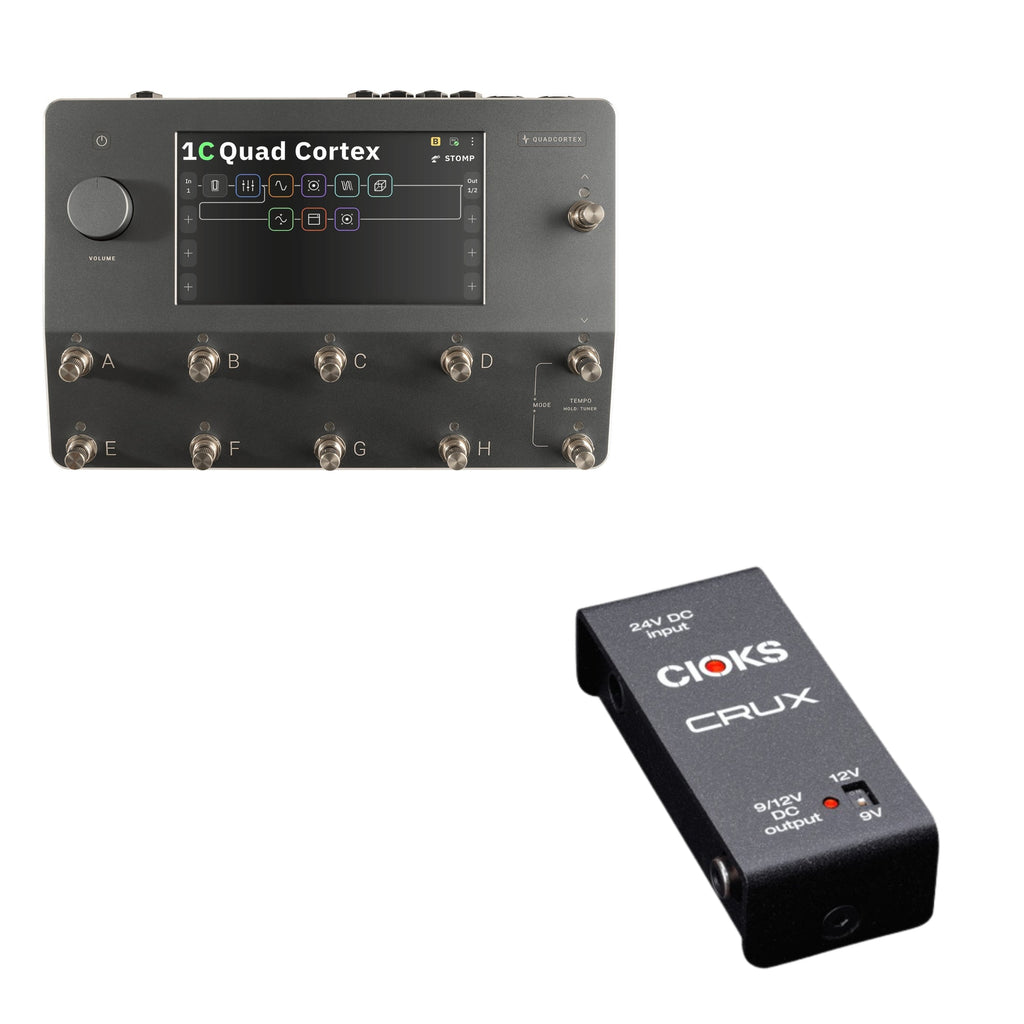

CIOKS CRUX is an add-on for CIOKS DC7 for use with high-power 9V or 12V multi-effects pedals including Neural DSP Quad Cortex and Line 6 HX-series pedals. Connect CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, and connect a CIOKS Flex cable from CRUX to the multi-effects pedal.
Using CRUX frees DC7 outlets that would otherwise be required to power these devices, allowing additional pedals to be connected alongside a multi-effects unit and simplifying pedalboard setup.
Features
• Converts the 24V auxiliary outlet on DC7 into a 9V or 12V outlet with total power of 24W
• Powers Neural DSP Quad Cortex while saving DC7 outlets
• Overload and short circuit protected outlet
• Overvoltage protection
• 1 inch profile 25.4 mm matching CIOKS DC7
• Compatible with CIOKS MiniGRIP for drill free mounting underneath Pedaltrain boards sold separately
• One 24V DC Link cable included
• Two Flex cables included
• Designed in Denmark and assembled in Poland
• 5 year worldwide warranty
Specifications
• Input 24V DC
• Output 9V DC 2700 mA or 12V DC 2000 mA
• Total Output Power Maximum 24W
Whats in the Box
• Flex 1050 Type 1 5.5/2.1 mm DC plug centre negative L shape 30 cm black
• Flex 3050 Type 3 5.5/2.5 mm DC plug centre negative L shape 50 cm yellow
• L2415 DC Link cable EIAJ to EIAJ 15 cm black
• CRUX adapter
• L2415 DC Link cable
• Flex cables 1050 and 3050
• Mounting hardware for Pedaltrain and Templeaudio boards
• Product manual
• Flex guide
• CIOKS sticker sheet
