Solderless Convertible Strat Guitar Wiring Harness 250K Potentiometers Single Coil Pickup Version
Upgrading to premium quality electronics makes a difference and solderless makes it easier.
Do you like swapping pickups or maybe you do not want to solder because you are afraid of messing things up Our solderless assemblies provide the easiest solution and most reliable connections with our superior quality screw down terminals.
Best of all you can choose between the most popular Strat wiring schemes Blender or Standard that are simple to use and offer the best tonal options a Strat can have.
Do not forget to check out our selection of knobs here and switch tips here.
All of our wiring harnesses are proudly built in Burgaw NC.
Specs
Weight
.7 lb

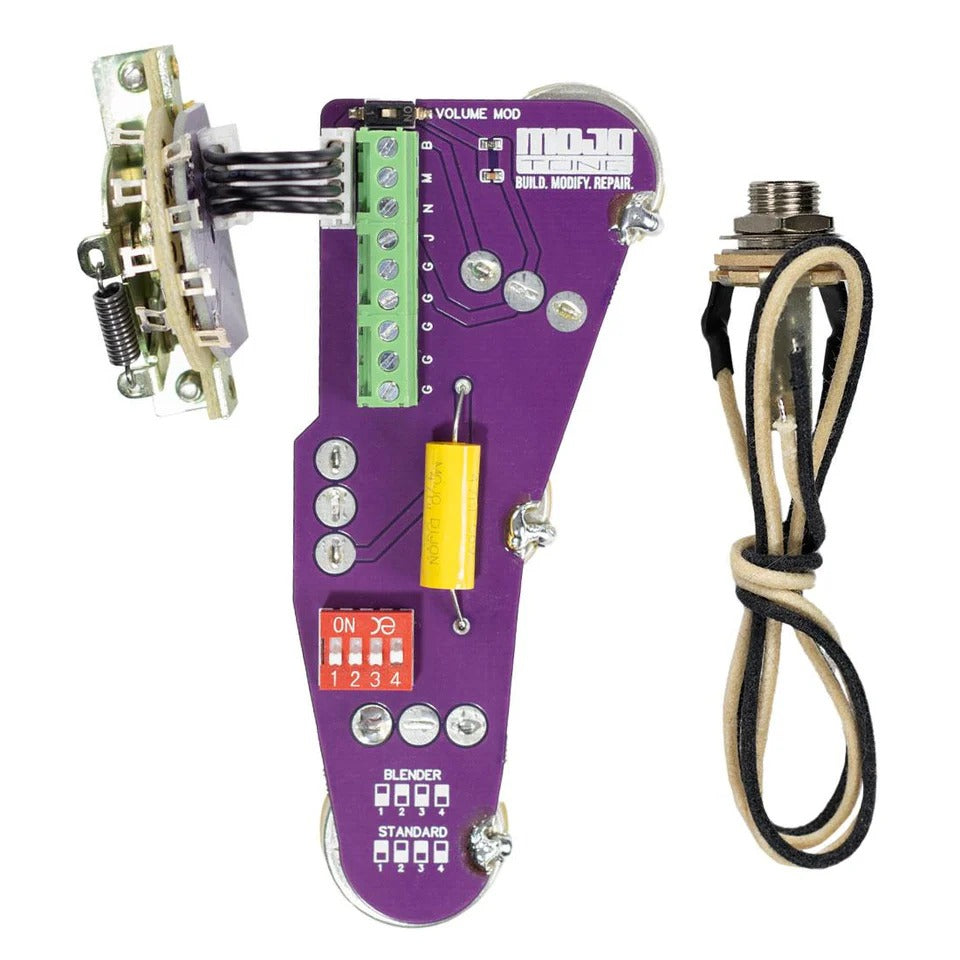

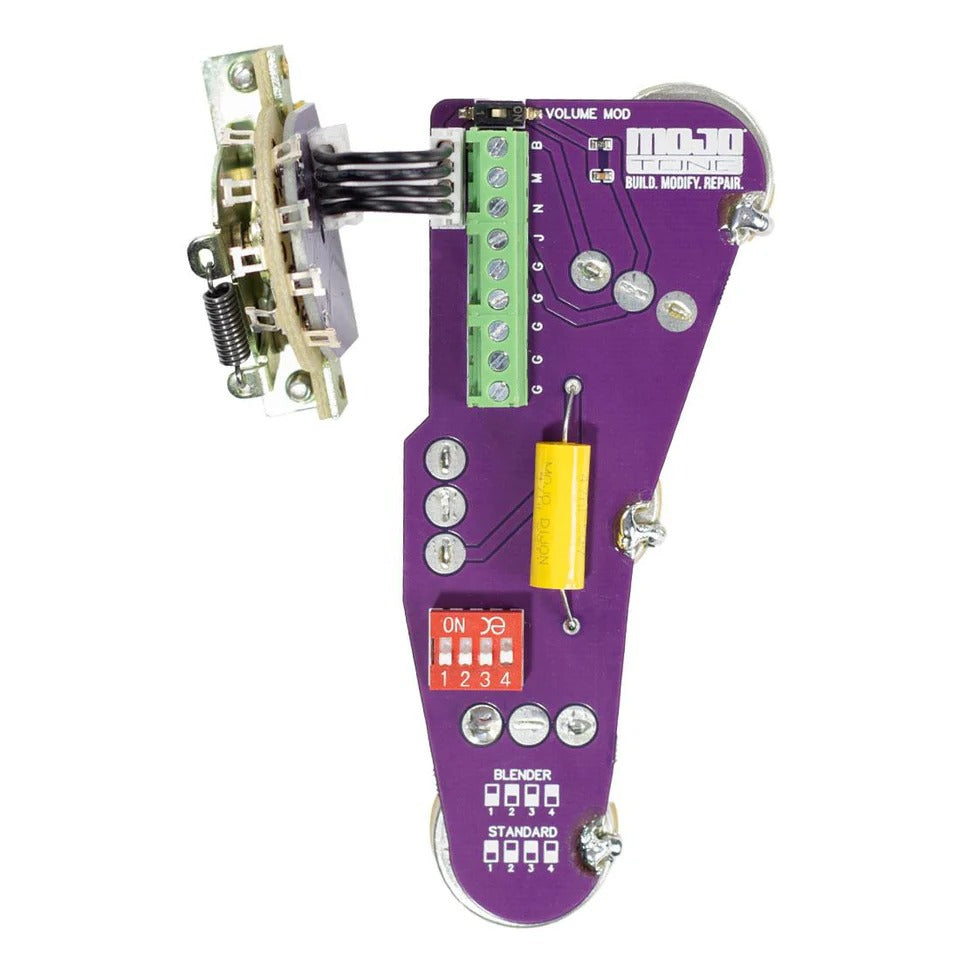

- Screw down solderless wire connection for easy reliable installation and quick pickup swaps
- Vintage quality USA branded components Switchcraft Mojotone CRL and CTS
- USA made CRL switch
- The most reliable and smoothest feeling switch ever made and has not changed since the 50s
- Smooth custom taper made to Mojotone specifications our CTS industrial potentiometers come with solid brass bushings and the tightest tolerances available
- Pre wired Switchcraft mono jack with pre tinned push back cloth covered wire
- Transparent and musical Mojotone Dijon capacitor .047 uF designed specifically for guitar and bass tone controls
- Switchable between our most popular Blender or Standard mod wiring
- Optional volume mod on off switch for retaining high end detail while rolling the volume back
- Easily serviceable for any future component swaps or maintenance
- Screwdriver included
Blender control functions
- Unlike standard wiring Blender wiring adds the option for all 3 pickups to be on at once and the ability to combine the neck and bridge pickups as much as you want
- Master volume
- Top knob
- Master tone
- Middle knob
- Blender control
- Bottom knob
Blender knob on 10
Position 1 Bridge
Position 2 Bridge and middle
Position 3 Middle
Position 4 Middle and neck
Position 5 Neck
Blender knob on 0
- Position 1 Bridge with neck blended in
- Position 2 Bridge and middle with neck blended in
- Position 3 Middle
- Position 4 Middle and neck with bridge blended in
- Position 5 Neck with bridge blended in
Standard mod control functions
- Standard Strat wiring with no tone control for the middle pickup only This reduces the load on positions 2 and 4 to only one tone pot giving you a more clear and open tone when combining the neck middle or bridge middle pickups AKA the EJ mod
- Master volume
- Top knob
- Neck tone
- Middle knob
- Bridge tone
- Bottom knob
Standard switching
- Position 1 Bridge
- Position 2 Bridge and middle
- Position 3 Middle
- Position 4 Middle and neck
- Position 5 Neck
Included

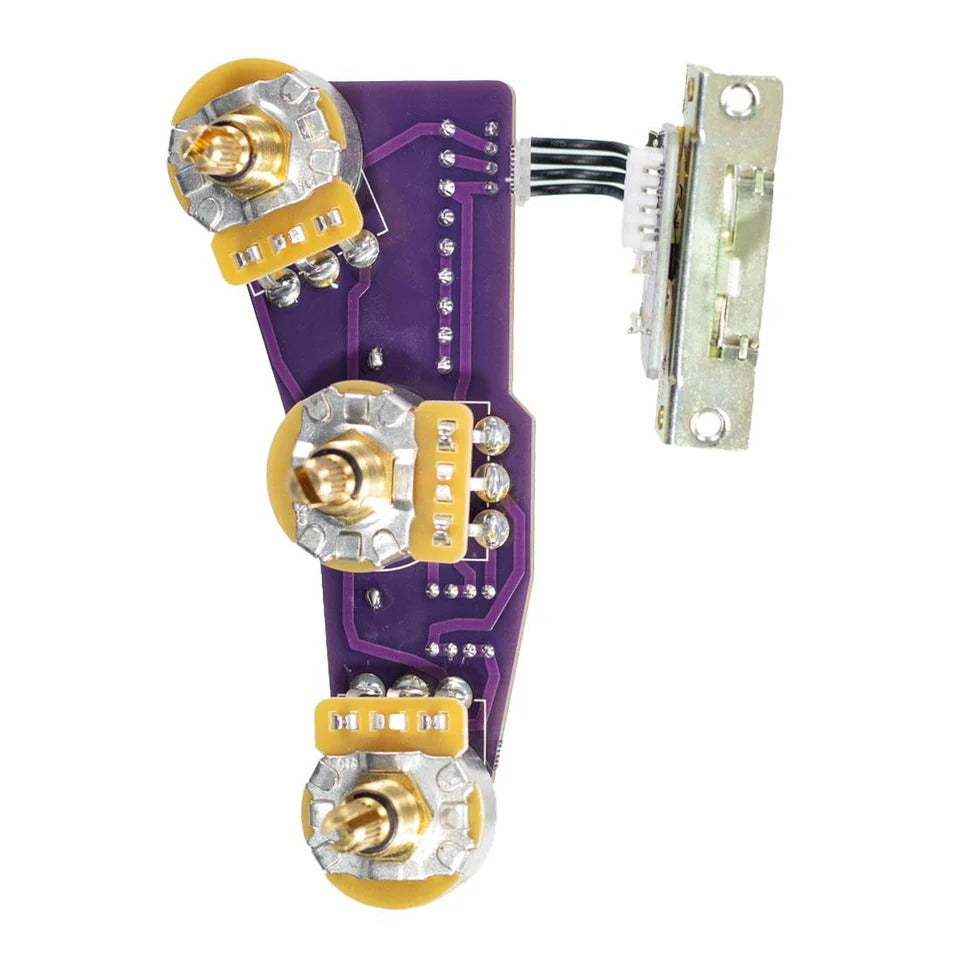

- 2 CTS vintage taper split shaft potentiometers
- 1 CTS blender split shaft potentiometer
- 1 CRL USA 5 way lever switch switch tip sold separately
- 1 prewired Switchcraft USA mono input jack
- 1 Mojotone Dijon tin foil capacitor .047 uF
- 1 optional treble bleed preserves highs on volume control
- 1 detailed wiring diagram and easy to understand instructions
Note
Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit
You will also need to change the metric knobs to inch sized 24 knurl push on knobs and the switch tip
If you have a non Fender brand Strat or overseas made Strat please verify the fit before purchasing
