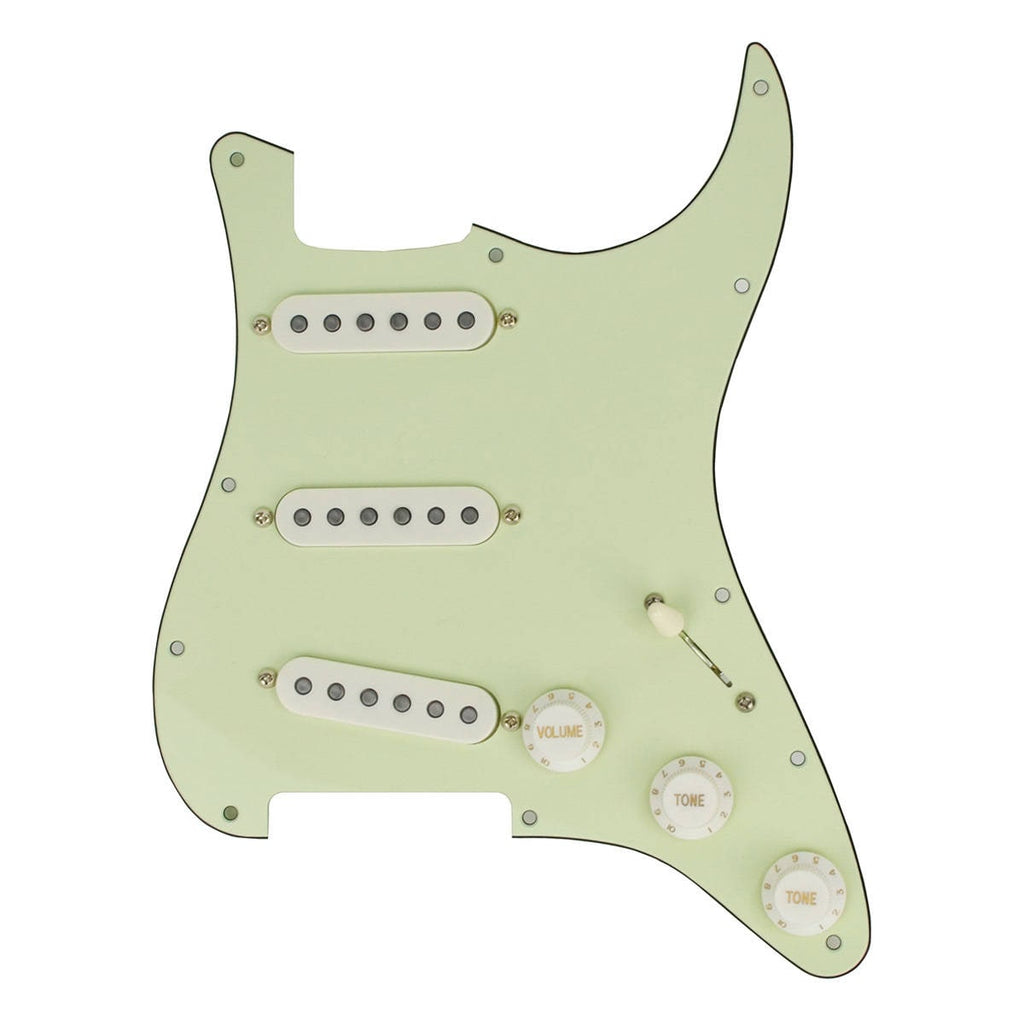

58 Quiet Coil Strat Pickup Prewired Pickguard
Mojotone 58 Quiet Coil prewired solderless pickguards are completely prewired to perfection with no soldering required Just drop in and play Our exclusive 7 percent tolerance CTS pots Switchcraft jack Mojotone Dijon capacitor and CRL 5 way switch complement what we believe to be the best sounding hum canceling Strat pickups ever made With the hot Quiet Coil in the bridge position you get a more balanced output between positions and better sustain for those who do not like the weaker vintage Strat pickups in the bridge position Carefully balanced in output from the neck middle to bridge positions and completely hum canceling in all positions
Please check out our Quiet Coil FAQ
Our approach was very simple to make a hum canceling Strat pickup that looks and sounds like a real single coil with minimal parts and adhering to actual vintage single coil attributes We have matched the resonant peak frequency and inductance of a vintage single coil so they sit right in the frequency response and feel of a traditional single coil without having to compensate for it The hot Quiet Coil is still very much like a single coil with more midrange and bass for a heavier blues tone with sustain
No batteries stacked coils or anything else associated with other hum canceling pickups were used in our design The result is simply the most pure and authentic Strat tone possible with absolutely no loss of true single coil tone They are sonically clear and warm with every bit of single coil sparkle and chime just like true 1967 Strat pickups
Note With all Mojotone Quiet Coil pickups you never have to worry about string spacing and radius issues or the magnets pulling the strings out of tune and you can bend the strings heavily without ever losing focus or sustain All of this while achieving perfect single coil Strat tone and absolutely no hum
Quiet Coil design features
Consistent scatterwound coils for that handwound tone sensitivity and clarity
Vintage formulated Alnico magnet cores with lower Gauss levels like an aged vintage Strat pickup
Vintage cloth covered leads for easy push back soldering
Matched resonant peak frequency inductance and resistance of a vintage single coil
Vintage staggered polepieces for a traditional Strat pickup look
No routing modifications are required to fit shallow vintage routs like the taller stacked hum canceling designs
Less than 10 parts are used to build the Quiet Coils Like a vintage Strat pickup they are simple
All of our pickups and wiring harnesses are proudly built in Burgaw NC
Specs
- Weight
1.6 lb
- Neck and middle
5.6K
- Magnet
Alnico 5
- Output
4
- Bass
3.5
- Mids
3
- Treble
6.5
- Bridge
11.6K
- Magnet
Alnico 5
- Output
5
- Bass
4.5
- Mids
6
- Treble
5
