CIOKS DC7 v2
The CIOKS DC7 v2 builds on the award-winning DC7 with improved efficiency, expanded connectivity, and the same ultra-low profile that made it the industry standard for powering pedalboards. At just one inch thick and weighing only 1.1 pounds, the DC7 v2 delivers up to 48 watts of clean, isolated power while remaining one of the thinnest and most versatile power supplies available.
Powered by advanced two-stage switch-mode technology, the DC7 v2 provides seven isolated DC outputs with four selectable voltages per outlet, making it easy to power everything from traditional analog pedals to demanding digital processors such as the Line 6 HX series and Neural DSP Quad Cortex. The updated design also replaces the original USB-A output with a higher-powered USB-C port delivering up to 15W, while improved efficiency allows the unit to run cooler than the original model.
Expandable with CIOKS 4, CIOKS 8, Crux, and other compatible 24V-powered accessories, the DC7 v2 offers exceptional flexibility for growing pedalboards while maintaining quiet, reliable performance.
Features
- Ultra-low noise design with multi-stage filtering
- One inch (25.4 mm) low-profile enclosure
- Seven fully isolated DC outputs
- Up to 660 mA at 9V DC per output
- Four selectable voltages per output:
- 9V DC
- 12V DC
- 15V DC
- 18V DC
- USB-C output delivering up to 15W
- 24V DC auxiliary output up to 2A
- Individual power limit LED for each output
- Built-in power meter displaying total system load
- Global overload status LED
- Universal 90–265V AC mains input
- Maximum total output power of 48W
- Expandable with CIOKS 4, CIOKS 8, Crux, and other compatible 24V-powered units
- Includes mounting hardware for Pedaltrain and Temple Audio pedalboards
- Compatible with CIOKS GRIP drill-free mounting system for Pedaltrain boards
- Includes 12 Flex cables
- Designed in Denmark
- Assembled in Poland
- 5-year worldwide warranty
Specifications
- Mains Input: 90–265V AC Universal
- Outputs 1–7:
- 9V DC / 660 mA
- 12V DC / 500 mA
- 15V DC / 400 mA
- 18V DC / 330 mA
- USB-C Output: 5V DC, 3A maximum
- Auxiliary Output: 24V DC, 2A maximum
- Maximum Total Output Power: 48W
- Dimensions: 160 x 88 x 25.4 mm (excluding rubber feet)
- Weight: 500 g (1.1 lbs)
- Warranty: 5 Years Worldwide
What's in the Box
- CIOKS DC7 v2 Power Supply
- Mains Power Cord
- Standard Flex Type 1 Cable (5.5/2.1 mm center negative) x7
- Standard Flex Type 2 Cable (5.5/2.1 mm center positive) x1
- Standard Flex Type 4 Cable (5.5/2.5 mm center positive) x1
- Standard Flex Type 5 Cable (3.5 mm tip positive jack) x1
- Split Flex Type 1 Cable (powers two pedals from one output) x1
- 3-Way Daisy Chain Flex Type 1 Cable (powers three pedals from one output) x1
- Mounting Hardware (2 screws and hex key)
- Manual
- Product Sheet (Drill Guide)
- CIOKS Sticker Sheet
- Flex Guide
C8e
CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four selectable voltages (9V, 12V, 15V and 18V).
CIOKS 8 was primarily designed to be used as a large extension to DC7 in case you need more outlets. If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7)*.

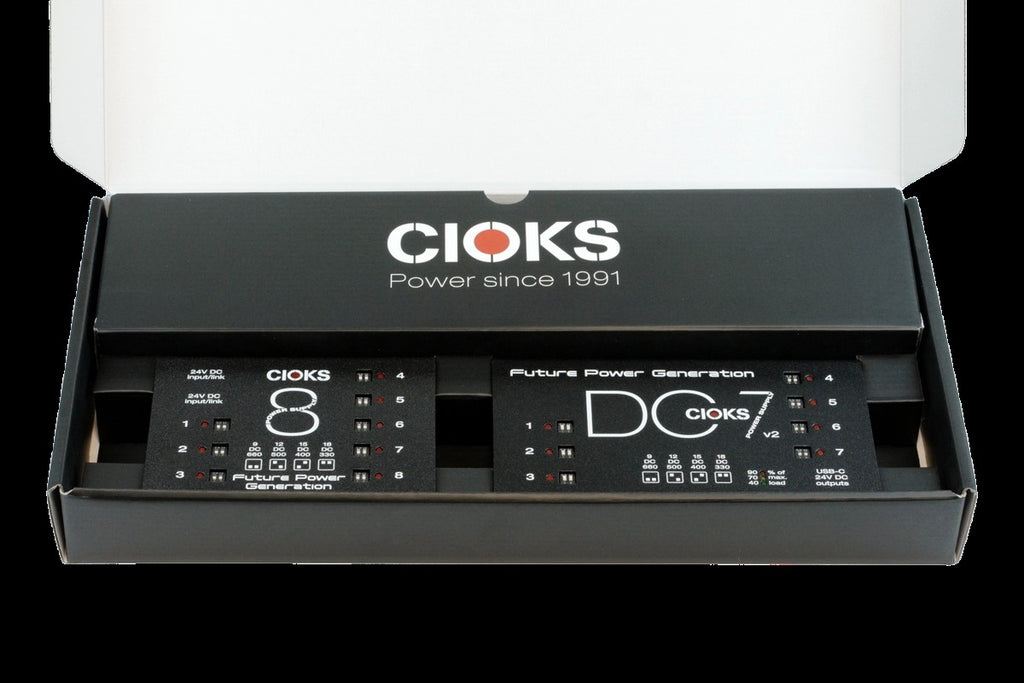

CIOKS 8 Expander is also available with the DC7 and a large set of Flex cables included. This is called the Superpower Bundle and is widely available at retailers.
Features
- CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
- Ultra-low noise achieved by multistage filtering
- 8 isolated DC-outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable voltages on each outlet
- Global overload status LED
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards**
- 12 Flex cables included
- 24V DC Link cable included
- Designed in Denmark, assembled in Poland
- 5-year worldwide warranty
Specifications
- Outlet 1-8:
- 9V DC / 660mA or
- 12V DC / 500mA or
- 15V DC / 400mA or
- 18V DC / 330mA each
