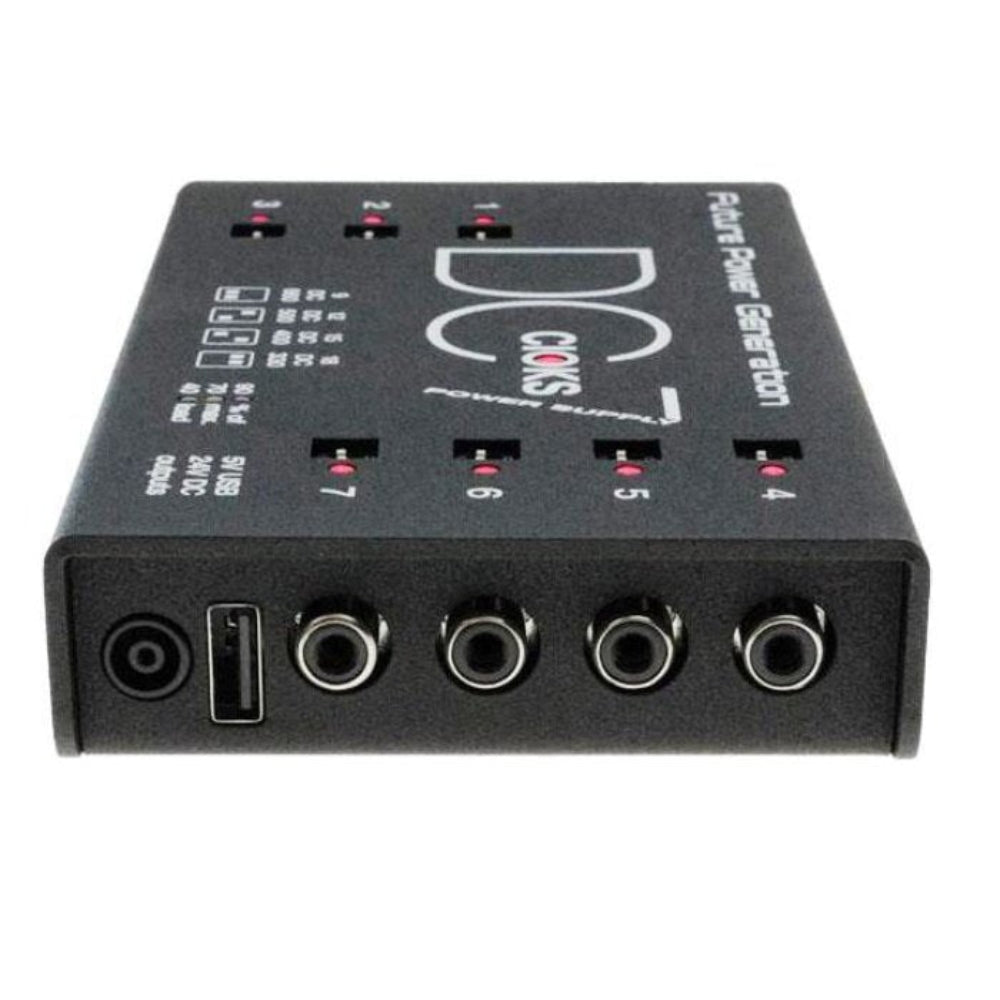

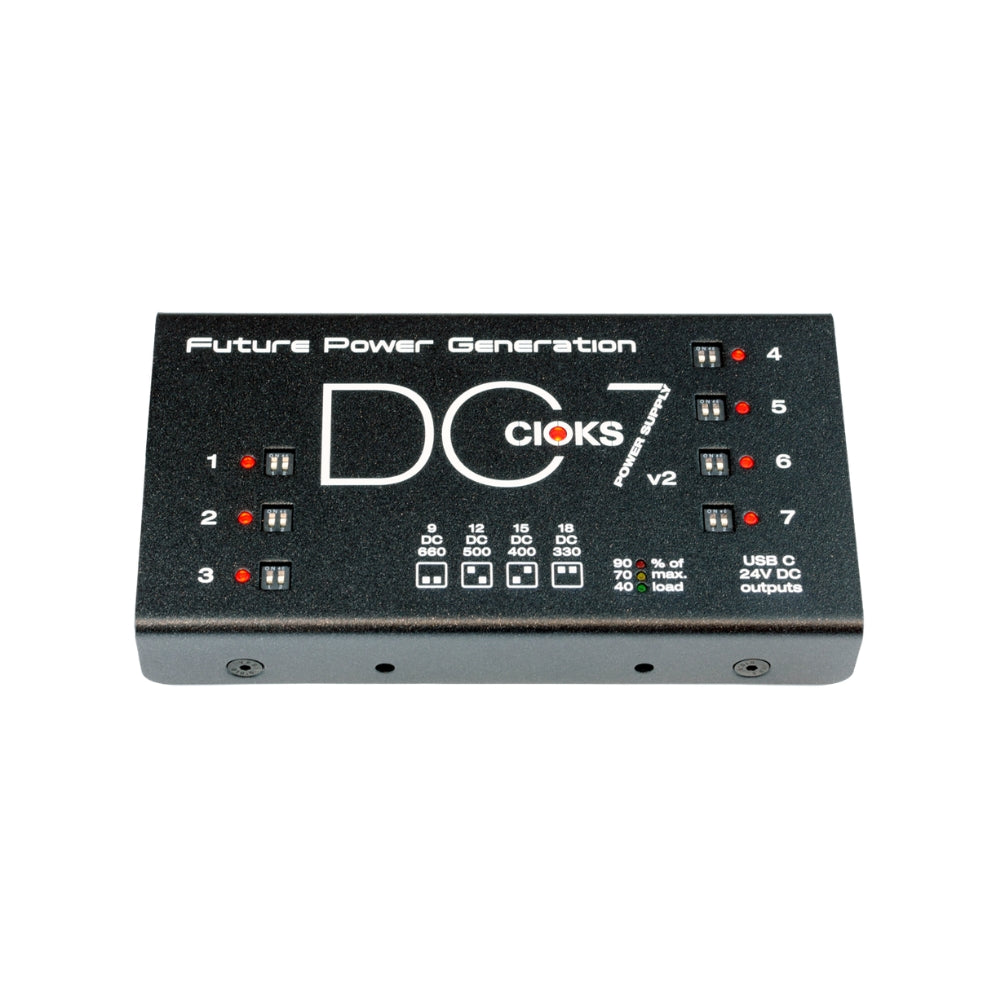

DC7 7 Isolated 660mA Outlet Power Supply
The DC7 is the thinnest, most flexible and most unique power supply for powering effect pedals currently available.
The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Eventide without noise of any kind.
CIOKS DC7 features 7 isolated DC-outlets for effect pedals each with four selectable voltages. Each of the outlets can put out 6W which corresponds to 660mA of current at 9V. Additionally the DC7 has also a 5V USB outlet and an auxiliary 24V outlet. The DC7 is expandable with CIOKS 4 Expander, CIOKS 8 Expander and the Crux for more isolated outlets and even more flexibility. Combined with the large set of CIOKS Flex cables included we are confident in that this is the most flexible, noise-free solution in the market for powering pedalboards with a multitude of different pedals.
DC7 is also available with the CIOKS 8 Expander and a large set of Flex cables included. This is called the Superpower Bundle and is widely available at retailers.
- Groundbreaking 1-inch profile (25,4mm)
- 2-stage switch-mode power supply topology
- Ultra-low noise achieved by multistage filtering
- 7 isolated DC-outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable voltages on each outlet
- 5V USB outlet with max. 1A
- 24V DC auxiliary outlet with max. 2A
- Individual power limit LED on all outputs
- Built-in true power meter showing the total load
- Global overload status LED
- Universal mains input voltage 90 to 265V AC
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
- 12 Flex cables included
- Expandable with CIOKS 4*, CIOKS 8* and Crux*
- Weighs 1.1 lbs. (500 grams)
- Designed in Denmark, assembled in Poland
- Mains input: 90-265V AC universal
- Outlet 1-7: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
- USB outlet: 5V DC, max 1A
- AUX outlet: 24V DC, max 2A
- Total maximum output power: 48W
- Size: 160 x 88 x 25,4mm excl. rubber feet
-
Weight: 500g / 1.1lbs
- Warranty: 5 years worldwide
What's in the box
- CIOKS DC7 power supply
- Mains power cord
- Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
- Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
- Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
- Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
- Split Flex type 1 – powers two pedals of a single outlet x1
- 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
- Mounting hardware: 2 screws and a hex-key
- Manual
- Product sheet (drill guide)
- CIOKS sticker sheet
- Flex guide
_______________

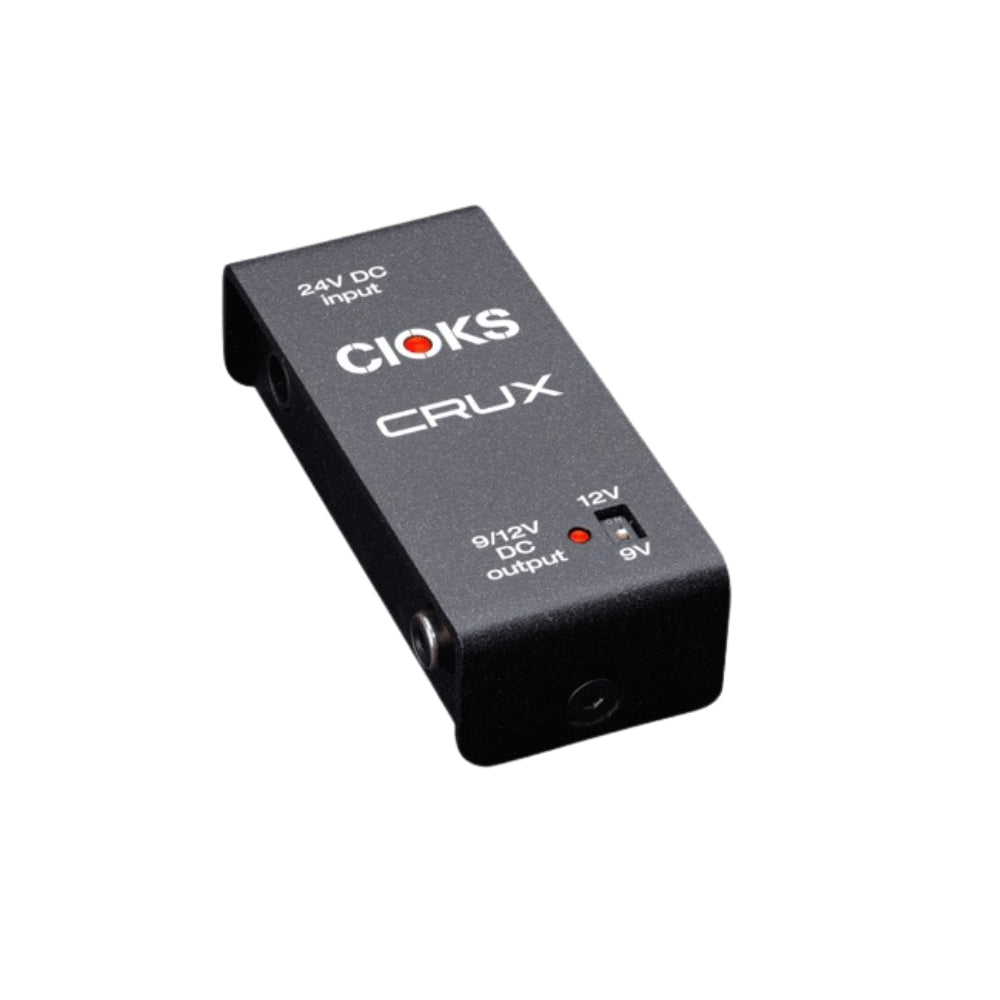

CIOKS CRUX

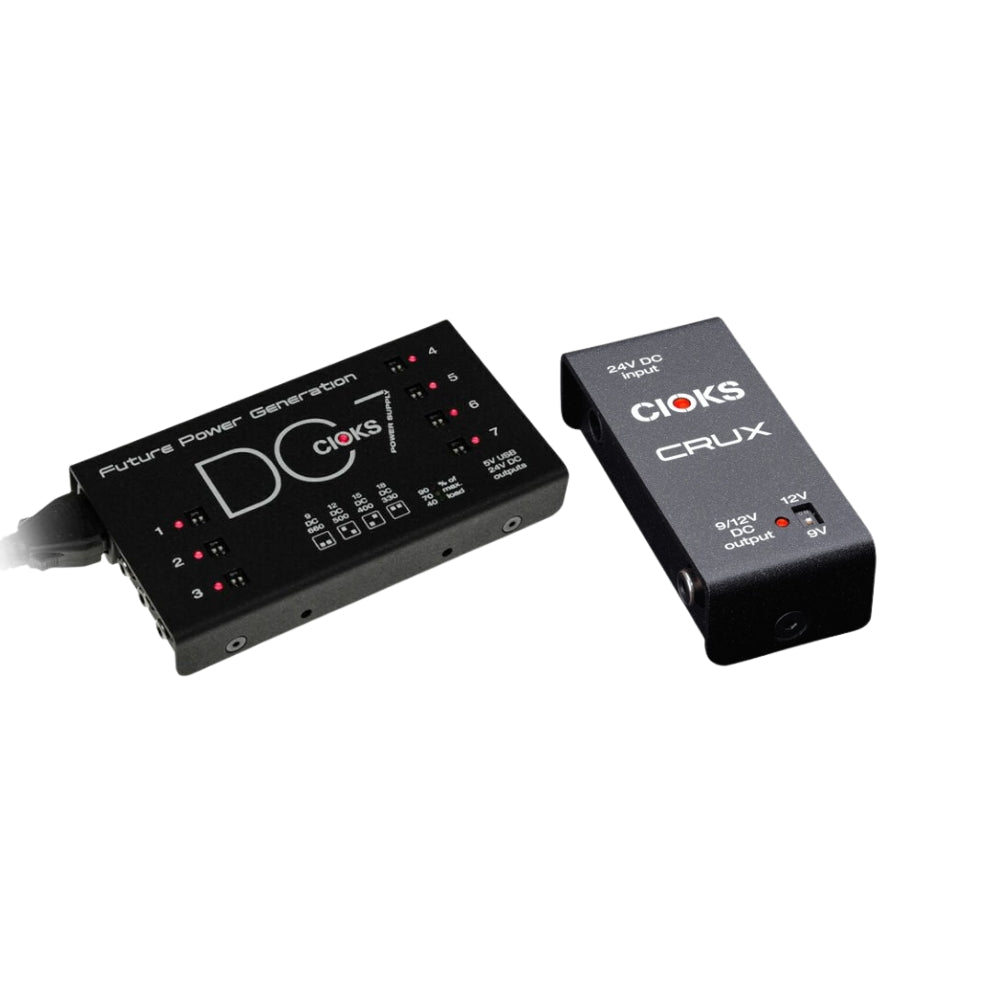

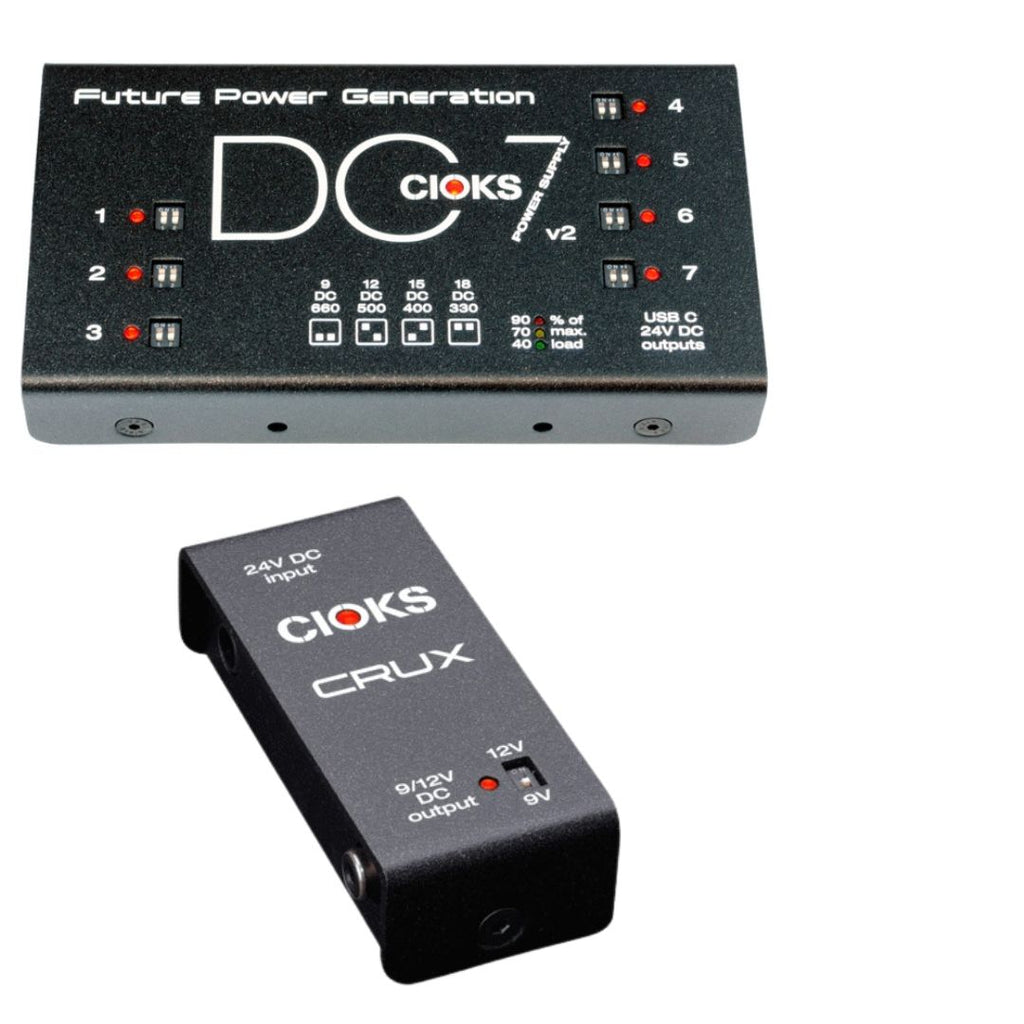

CIOKS CRUX is an add-on for CIOKS DC7 for use with high-power 9V or 12V multi-effects pedals including Neural DSP Quad Cortex and Line 6 HX-series pedals. Connect CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, and connect a CIOKS Flex cable from CRUX to the multi-effects pedal.
Using CRUX frees DC7 outlets that would otherwise be required to power these devices, allowing additional pedals to be connected alongside a multi-effects unit and simplifying pedalboard setup.
Features
• Converts the 24V auxiliary outlet on DC7 into a 9V or 12V outlet with total power of 24W
• Powers Neural DSP Quad Cortex while saving DC7 outlets
• Overload and short circuit protected outlet
• Overvoltage protection
• 1 inch profile 25.4 mm matching CIOKS DC7
• Compatible with CIOKS MiniGRIP for drill free mounting underneath Pedaltrain boards sold separately
• One 24V DC Link cable included
• Two Flex cables included
• Designed in Denmark and assembled in Poland
• 5 year worldwide warranty
Specifications
• Input 24V DC
• Output 9V DC 2700 mA or 12V DC 2000 mA
• Total Output Power Maximum 24W
Whats in the Box
• Flex 1050 Type 1 5.5/2.1 mm DC plug centre negative L shape 30 cm black
• Flex 3050 Type 3 5.5/2.5 mm DC plug centre negative L shape 50 cm yellow
• L2415 DC Link cable EIAJ to EIAJ 15 cm black
• CRUX adapter
• L2415 DC Link cable
• Flex cables 1050 and 3050
• Mounting hardware for Pedaltrain and Templeaudio boards
• Product manual
• Flex guide
• CIOKS sticker sheet
