Charvel Pro-Mod Plus DK24 HH Ebony Fretboard - Violet Radiance

Pro Mod Plus Dinky DK24 HH HT E QM

Loaded with premium features, this Pro Mod Plus Dinky DK24 HT model features a sleek Dinky body constructed from basswood with a quilt maple top, sculpted shredders cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt on caramelized maple neck features graphite reinforcement for rock solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay side dots for enhanced visibility in low light conditions.

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan Full Shred TB 10 bridge pickup and direct mount Seymour Duncan Alnico Pro II APH 1N neck pickup. The bridge pickup radiates a crisp top end with low end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Other premium modern features include a five way blade pickup switch, speed knobs for the volume and no load tone controls, Charvel HT6 string through body hardtail bridge, Charvel branded die cast locking tuners and more.

Blending sophisticated style with assertive tone, the Pro Mod Plus Dinky DK24 HT HH E delivers premium performance and modern features.

Features

• 25.5" scale length

• Basswood Dinky body with quilt maple top

• Scalloped lower back bout

• Bolt on maple neck with graphite reinforcement

• Sculpted shredders cut heel

• 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets

• Heel mount truss rod adjustment wheel

• Direct mount Seymour Duncan Full Shred TB 10 humbucking bridge and Seymour Duncan Alnico II Pro APH 1N humbucking neck pickups

• Five way blade switch, volume control and no load tone control

• Charvel HT6 string through body hardtail bridge

• Charvel branded die cast locking tuners

• Included deluxe gig bag

Neck

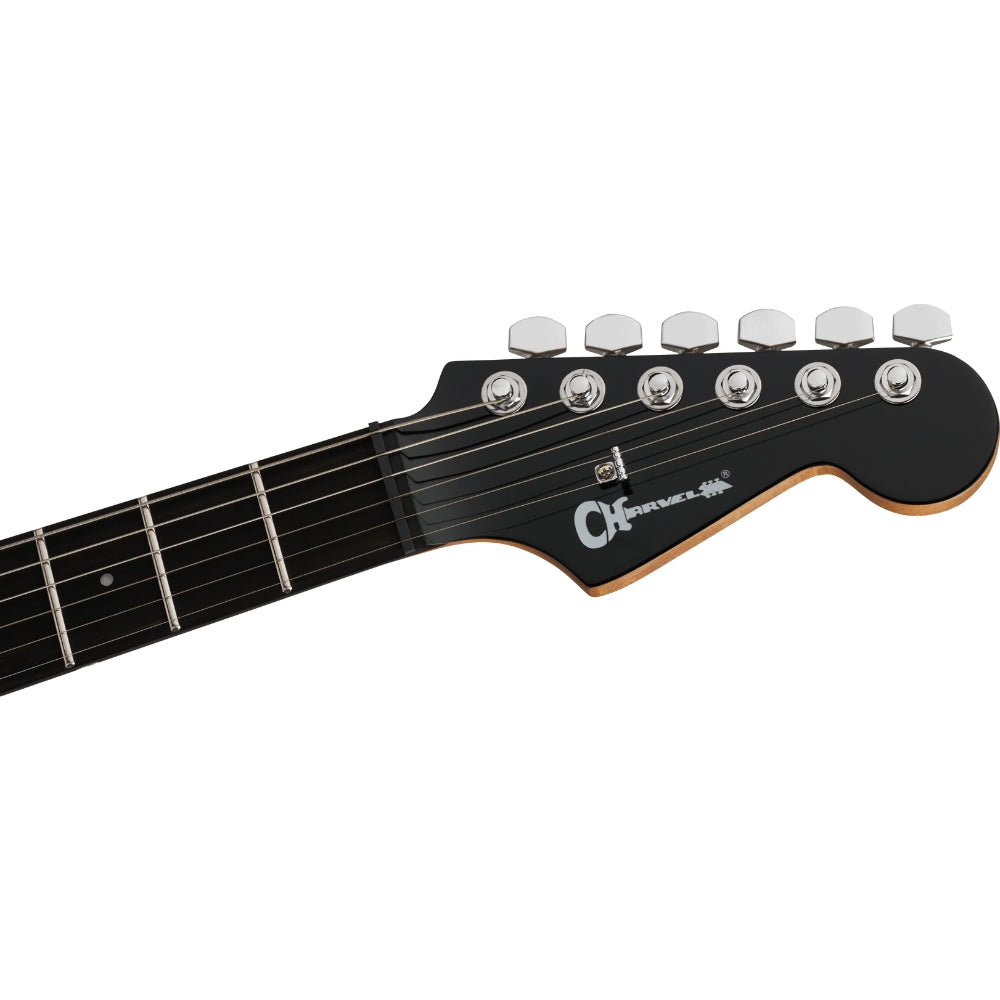

• Headstock: Licensed Fender Stratocaster

• Neck Material: Caramelized Maple

• Neck Finish: Natural Satin

• Neck Shape: Speed Neck with Rolled Fingerboard Edges

• Neck Construction: Bolt On with Graphite Reinforcement

• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

• Fingerboard Material: Ebony

• Position Inlays: 4mm Pearloid Dot

• Side Dots: Luminlay

• Number of Frets: 24

• Truss Rod: Dual Action with Wheel

• Truss Rod Nut: Heel Mount Truss Rod Adjustment Wheel

• String Nut: Graph Tech TUSQ XL

• Nut Width: 1.6875" (42.86 mm)

• Nut Material: Graph Tech TUSQ XL

• Fret Size: Jumbo Stainless Steel

• Scale Length: 25.5" (648 mm)

Body

• Body: Basswood

• Body Finish: Gloss

• Body Shape: Dinky

• Body Top: Quilt Maple

• Body Style: Solid Body

• Body Material: Basswood

Hardware

• Bridge: Charvel HT6 String Through Body Hardtail

• Pickguard: None

• Pickup Covers: Black

• Control Knobs: Speed Knob

• Switch Tip: Black

• Hardware Finish: Chrome

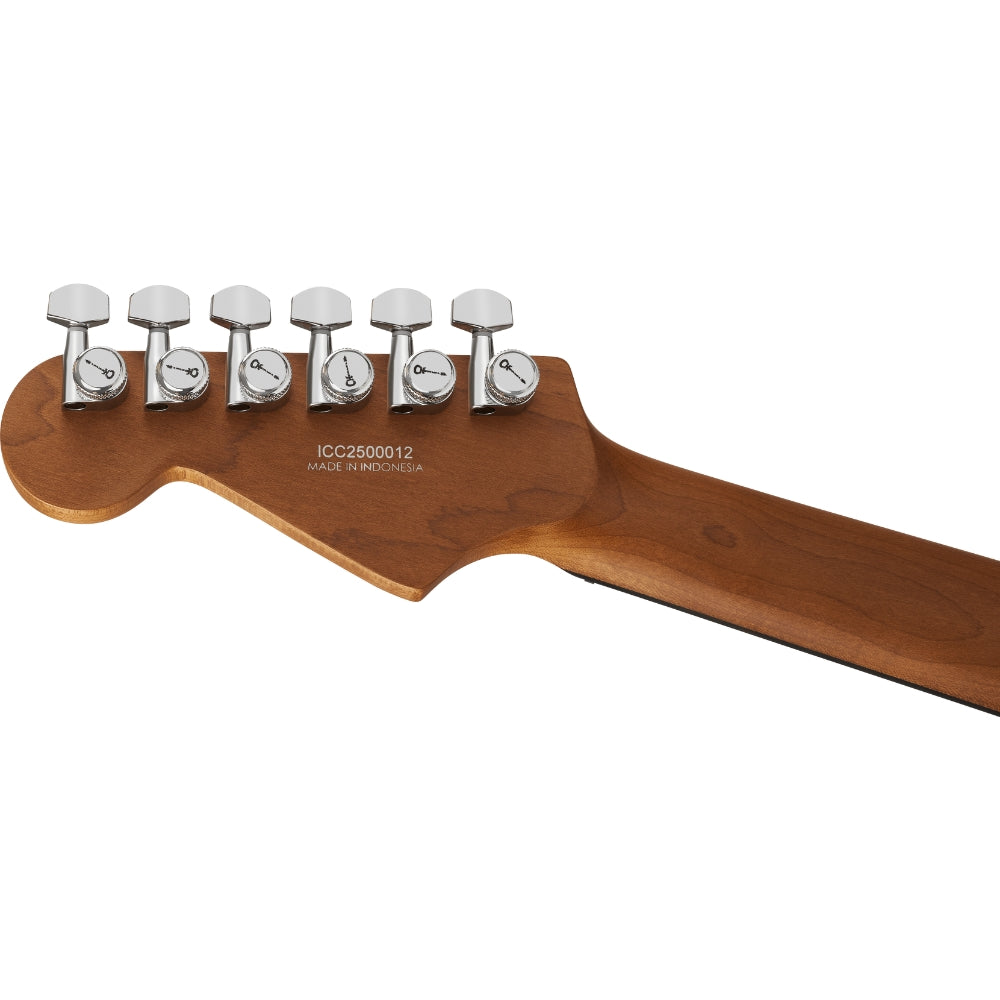

• Tuning Machines: Charvel Branded Die Cast Locking

• String Trees: Fender Standard String Guide

• Strings: Nickel Plated Steel (.009 .042 Gauges)

• Neck Plate: None 4 Bolt Sculpted Heel

• Strap Buttons: Standard

Electronics

• Bridge Pickup: Seymour Duncan Full Shred TB 10

• Neck Pickup: Seymour Duncan Alnico II Pro APH 1N

• Pickup Configuration: HH

• Controls: Volume (500K EVH Bourns Low Friction Pot), No Load Tone

• Switching: 5 Position Blade Position 1 Full Bridge Pickup, Position 2 Bridge Inner Coil, Position 3 Both Inner Coils, Position 4 Neck Inner Coil, Position 5 Full Neck Pickup

• Auxiliary Switching: 2 Position Mini Toggle Down All Series, Up All Parallel
