Description

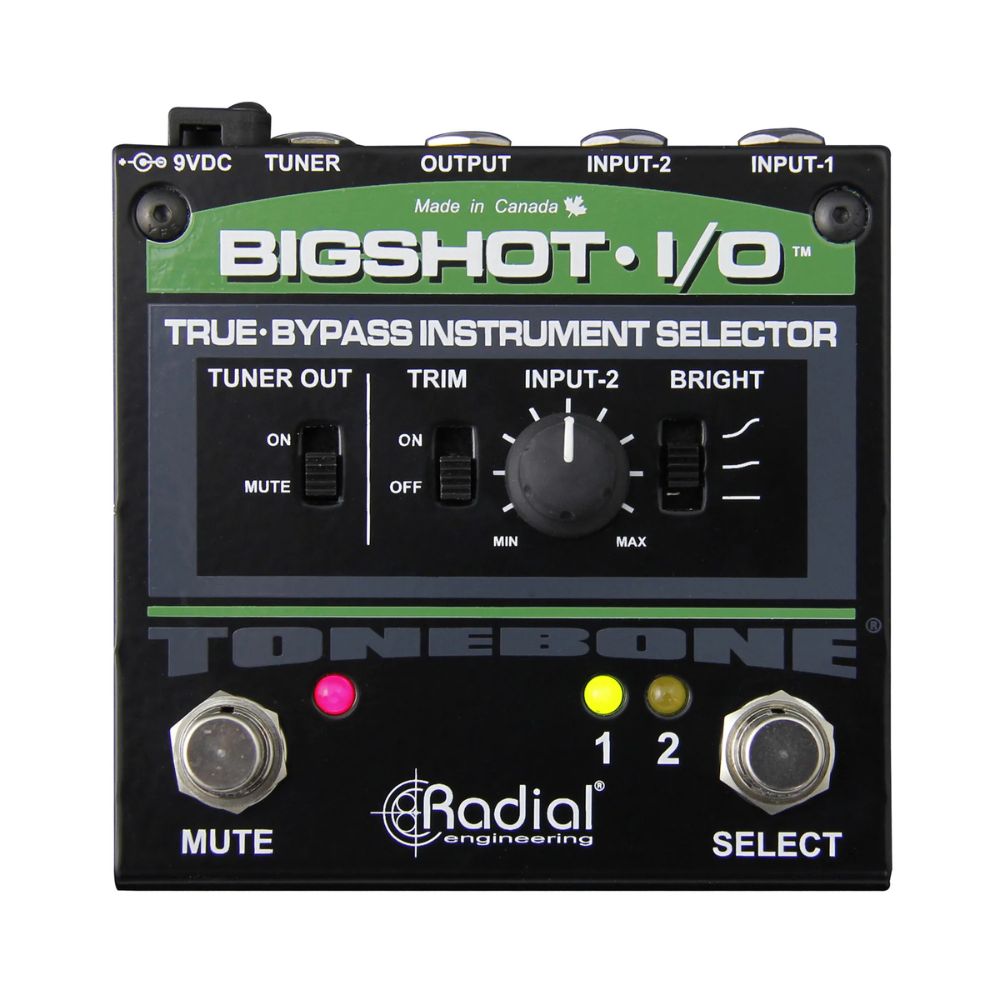

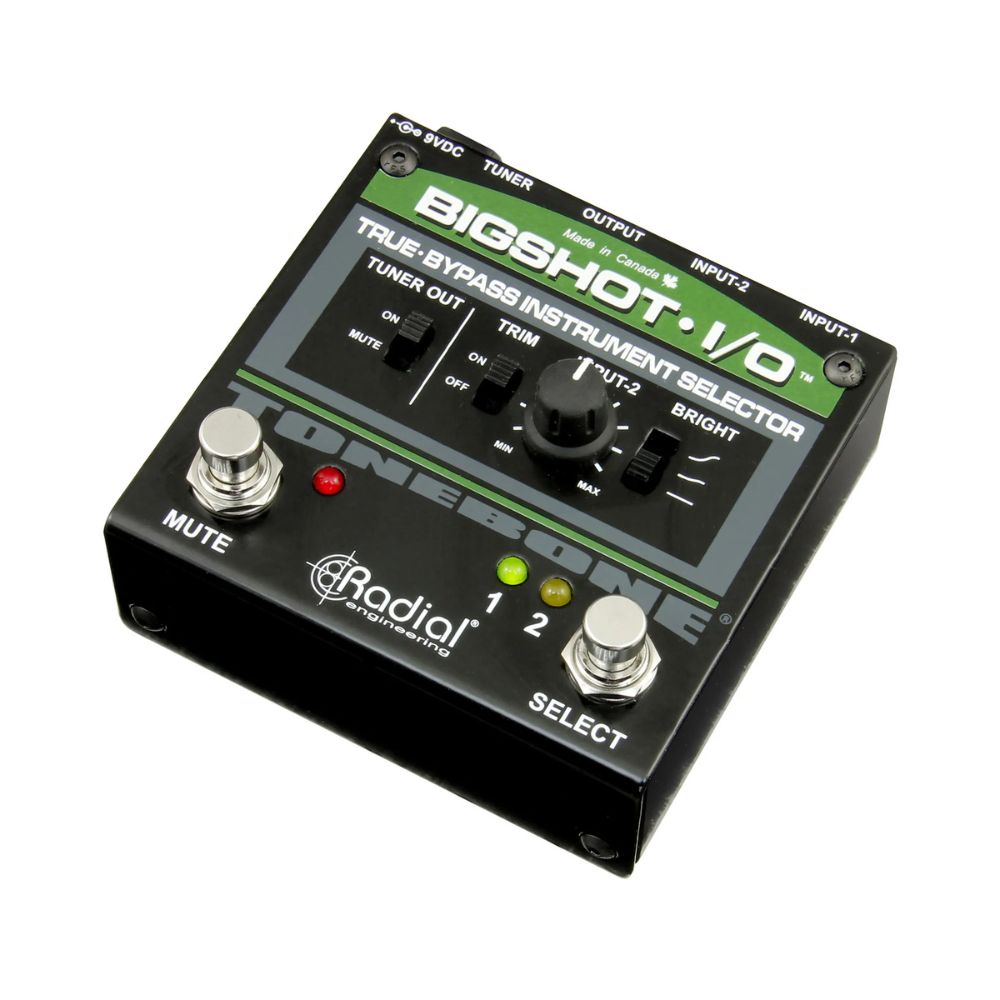

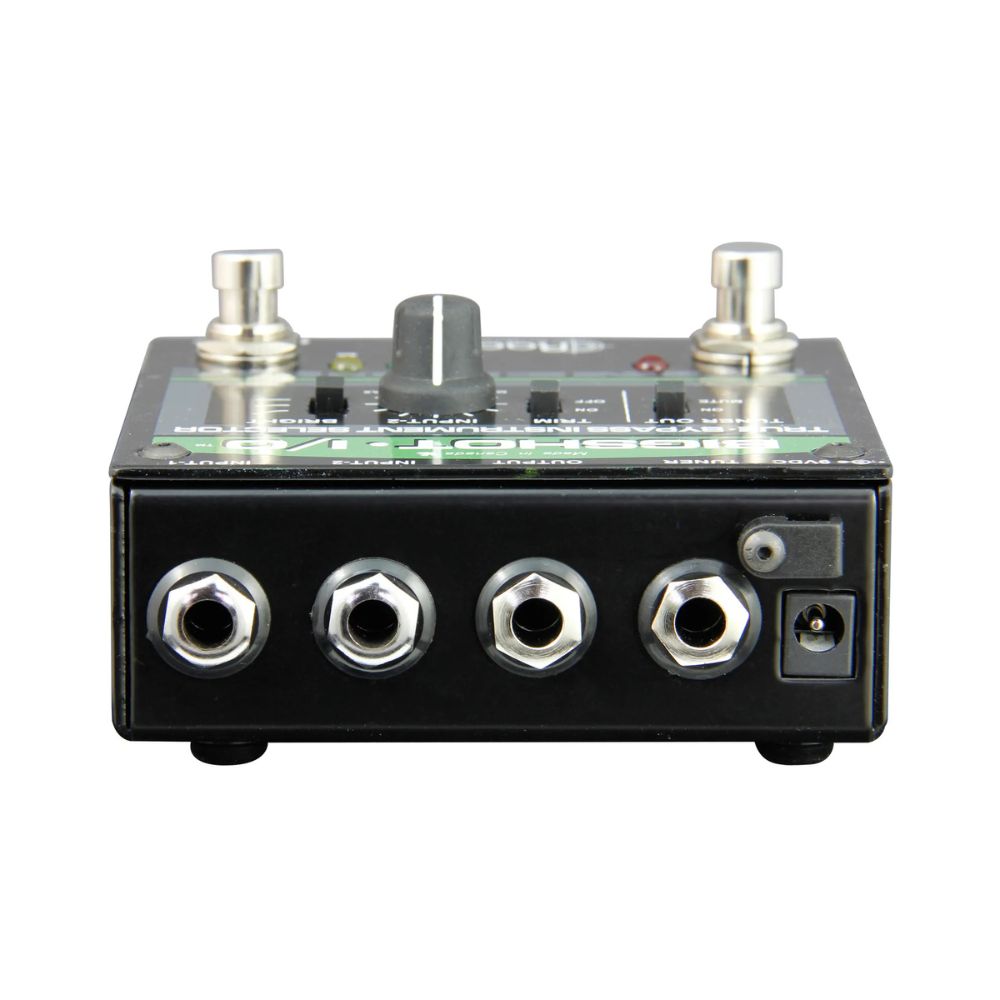

BigShot I/O
The Radial BigShot i/o is an easy-to-use instrument selector that lets you quickly switch between two instruments and send the signal to your amp. In the most basic application, the BigShot i/o is 100% true-bypass for the most demanding tone purist. To further enhance connectivity, input-2 is equipped with a trim control that lets you reduce the signal from the louder of your two instruments so that the output from both instruments is matched. When passive instruments are used, a unique ‘bright’ switch lets you compensate for high-frequency loss due to longer cables.
The BigShot i/o is equipped with a tuner output. With a simple foot stomp on the MUTE switch, the sound going to the amp is turned off and diverted to the tuner for quiet on-stage adjustments. An ‘always on’ switch also permits on-the-fly quiet tuning should you wish to have the tuner on at all times.
Compact, extremely rugged, and completely passive, the BigShot i/o does not require any power to make it work. The BigShot i/o is perfect for all your instruments and hi-Z line-level signal switching.
Features
• Toggle between two instruments with a footswitch
• Separate tuner output with MUTE footswitch
• DIM control for matching instrument levels
• High-frequency compensation for passive pickups
• Bright LED status indicators
Applications
• Quickly switch between instruments on-stage
• Tuner management, silent-tuning or always-on
• A-B switcher using tuner-out and mute switch
Cool Stuff
• 100% Passive audio circuit
• Compact and rugged, perfect for pedalboards
• Works with all instruments: guitar, bass, keys
Dimensions (W x D x H)
• 3.6” x 4” x 2” (92mm x 100mm x 51mm)
• 3 Year transferable warranty
Quick Change Between Guitars
Select between two electric guitars with the right footswitch and mute the output with the left footswitch for quick tune-ups. Features 100% true-bypass signal path.
Switching Acoustic and Electric Guitars
Multi-instrumentalists are often forced to switch between electric and acoustic guitars or between other instruments. The BigShot i/o makes it easy! Use input-1 for the electric and lower the sensitivity on input-2 for your acoustic to balance the signals.
Switch Passive and Active Pickups
Output levels vary dramatically between an active bass and a passive one, making it difficult to switch without adjusting the amp level. Solve the problem by connecting your passive bass to input-1 and your high-output active bass to input-2.
