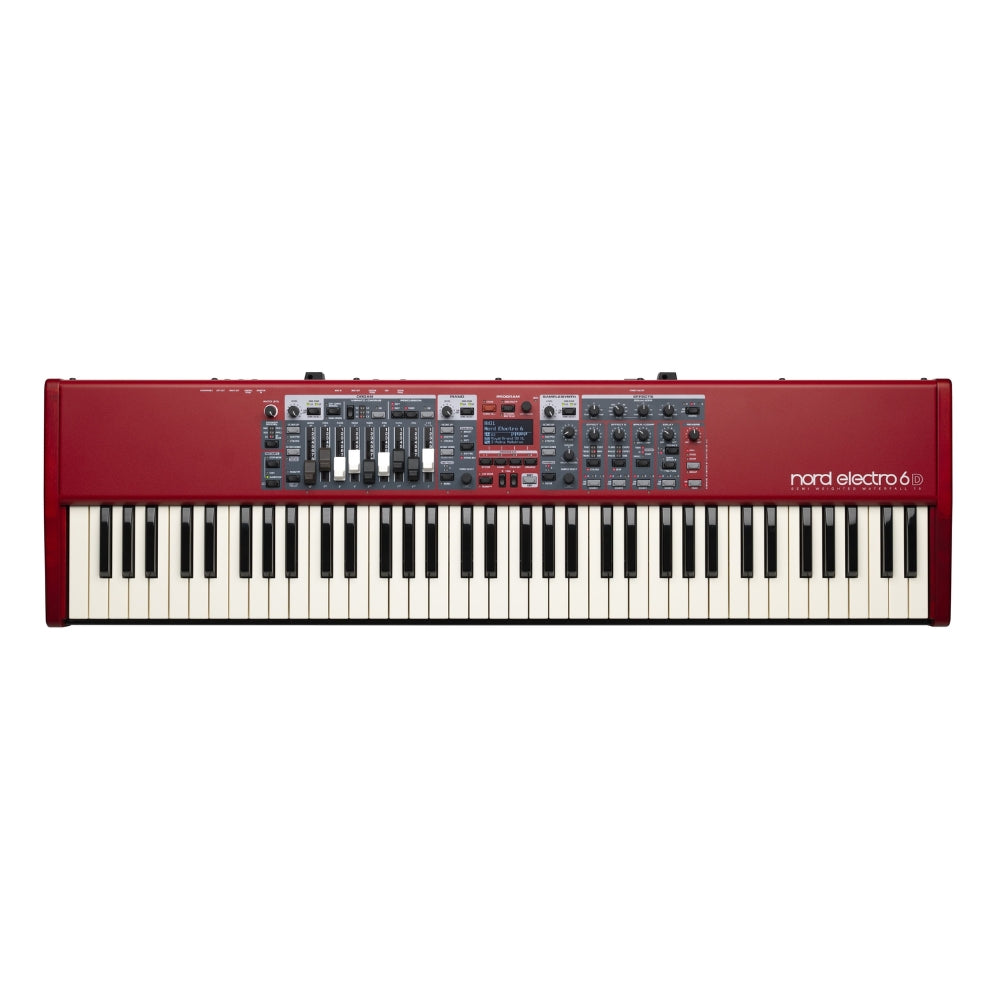

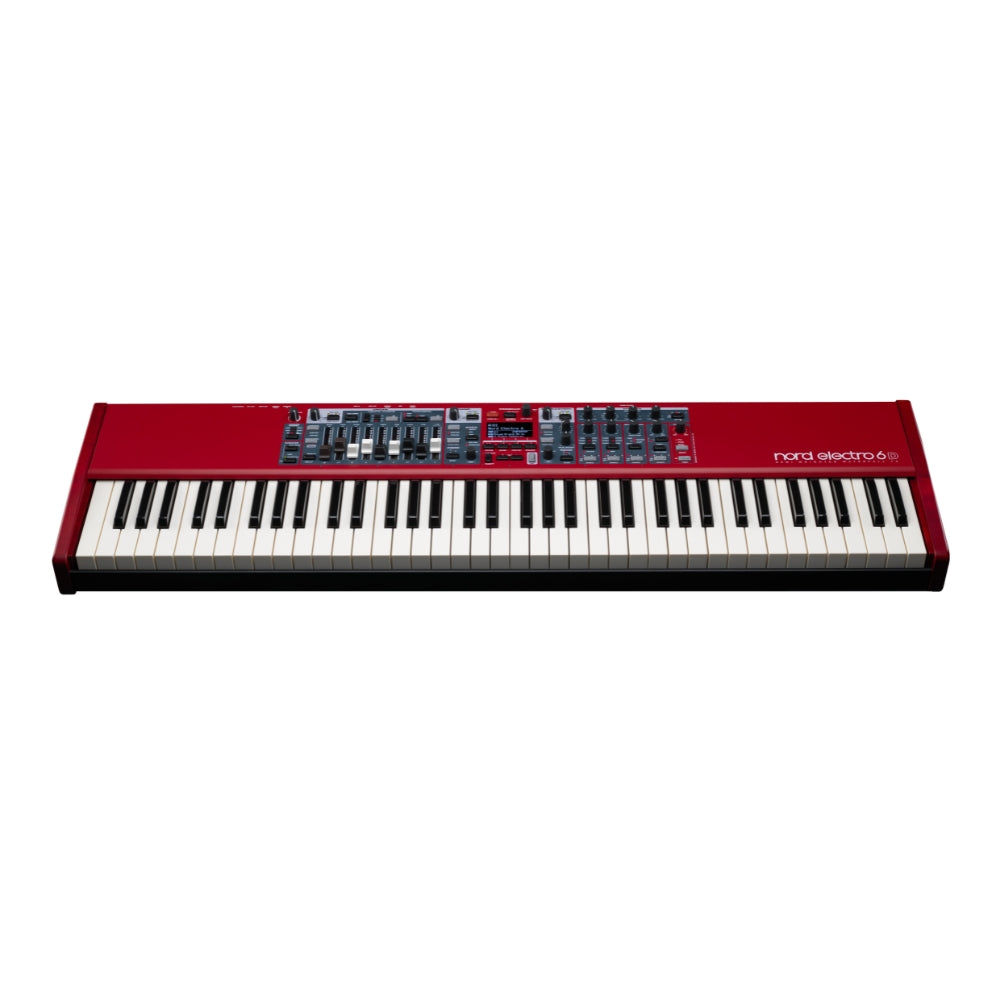

Nord Electro 6D 73 73-key Keyboard

Nord Electro 6D 73

The Nord Electro 6D 76 key stage piano elevates an already well established keyboard to the next level of live performance. This keyboard features an easy to use interface with split and layering options extended polyphony and so much more. With the combination of acoustic and electric pianos sample synth organ and built in effects you will be hard pressed to find a situation where this keyboard is not the ideal solution.

Includes

• User manual

• Power cord

General

• Seamless transitions

• 3 part multitimbral

• Split and layer all 3 sections with optional split point crossfades

• OLED display for overview

• Organize mode for rearranging programs sounds and pages

Piano Section

• 1 GB memory for Nord Piano Library

• Piano filters

• Extended voice polyphony

• Sympathetic string resonance

• 4 dynamic curves

Sample Synth

• Expanded memory 512 MB for Nord Sample Library

• Extended voice polyphony

• Dedicated sample synth section with attack decay release and dynamic controls

Organ

• B3 tonewheel B3 bass Vox and Farfisa simulations

• 2 pipe organ models

• Dual organ mode

• Model 122 vintage rotary speaker

• Physical drawbars on 6D 61 and 6D 73 models

• Mount for half moon switch for rotary speaker control 6D 61 73

Effects

• Wide range of tweakable stereo effects modeled after classic stompboxes

• Reverb with bright mode

Specifications

• Three independent sound sections organ piano and sample synth usable simultaneously as layer or split

• 6 keyboard split points C3 to F5 with split point crossfade functionality

• Organize page mode grouping up to four programs into pages and arranging with organize mode

• 4 live slots

• External keyboard feature assigning sound engines to external keyboard while others play from Electro 6

Organ Section Details

• C2D B3 tonewheel B3 bass Vox Farfisa and 2 pipe organ models

• Adjustable percussion levels percussion decays and key click level

• Vibrato chorus control with separate functionality for each model C1 C2 C3 V1 V2 V3 options for B3 vibrato for Farfisa chorus detune for pipe organs

• 3 tonewheel modes for vintage level selection

• Dual organ mode controlling two independent manuals

• Manual organ mode

• Mount for half moon switch on 6D 61 73

• 6D 61 73 models include 9 physical drawbars

• 6 HP model includes digital LED drawbars

Piano Section Details

• 1 GB memory dedicated to Nord Piano Library

• Categories grand upright electric digital layer clav harpsichord

• Each category can contain multiple models

• All pianos replaceable using Nord Sound Manager

• Advanced string resonance control generation 2

• Soft release

• EQ filter

• 4 dynamic curves

• Stereo pianos and samples playable in mono

• 120 voice polyphony for piano library sounds

Amp Simulations

• Three amp speaker simulations compressor C2D 122 rotary speaker tube overdrive

• Drive compression amount controlled with drive knob

• Rotary speed controls slow fast stopped

• Close or normal microphone placement for 122 rotary speaker simulation

• Adjustable rotary treble and bass rotor speeds and acceleration rates

• Three band EQ with sweepable mid plus minus 15 dB gain attenuation

Master Effects

• Dedicated reverb with 3 modes room stage hall with optional bright mode and dry wet control

• Dedicated delay effect rate amount tap tempo and stereo ping pong

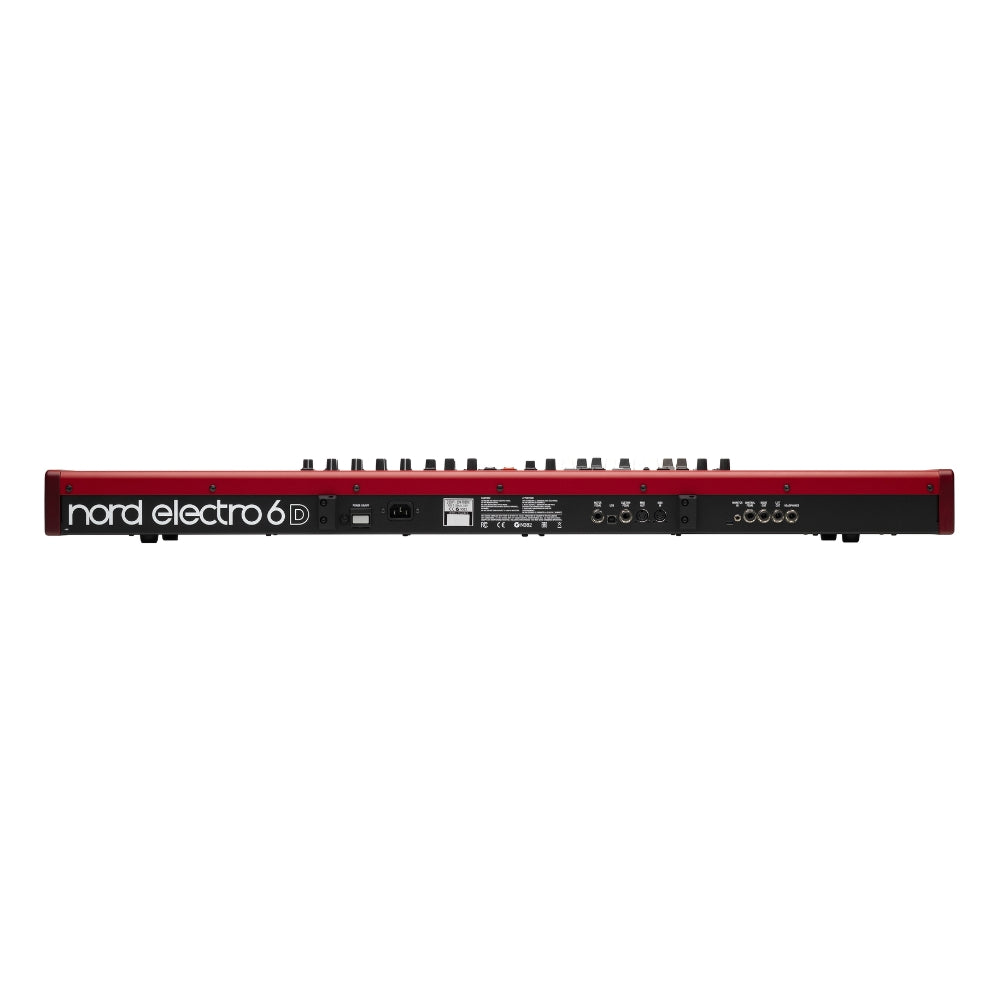

Connections

• 2 audio outputs L R quarter inch 6.35 mm jacks unbalanced

• 1 monitor input eighth inch 3.5 mm stereo jack

• 1 headphone output quarter inch 6.35 mm stereo jack

• 1 control pedal input quarter inch 6.35 mm TRS stereo jack compatible with Yamaha FC7 Roland EV 7 Roland EV 5 Korg EXP2 Korg XVP10

• 1 sustain pedal input quarter inch 6.35 mm jack compatible with momentary pedals such as Roland DP 2 DP 6 Yamaha FC 4 FC 5 Fatar VFP1 25

• 1 rotary speaker speed switch pedal input quarter inch 6.35 mm jack compatible with momentary or switch type pedals

• MIDI in MIDI out 5 pin DIN connectors

• USB type B connector for transferring sounds and USB MIDI

• IEC C14 power connector
