Description

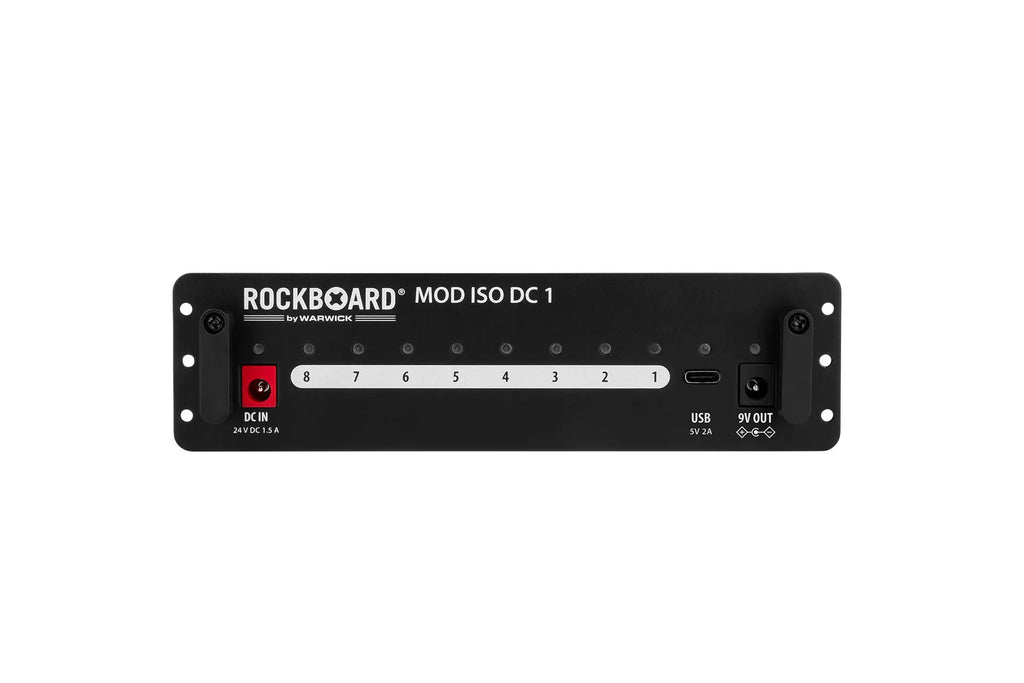

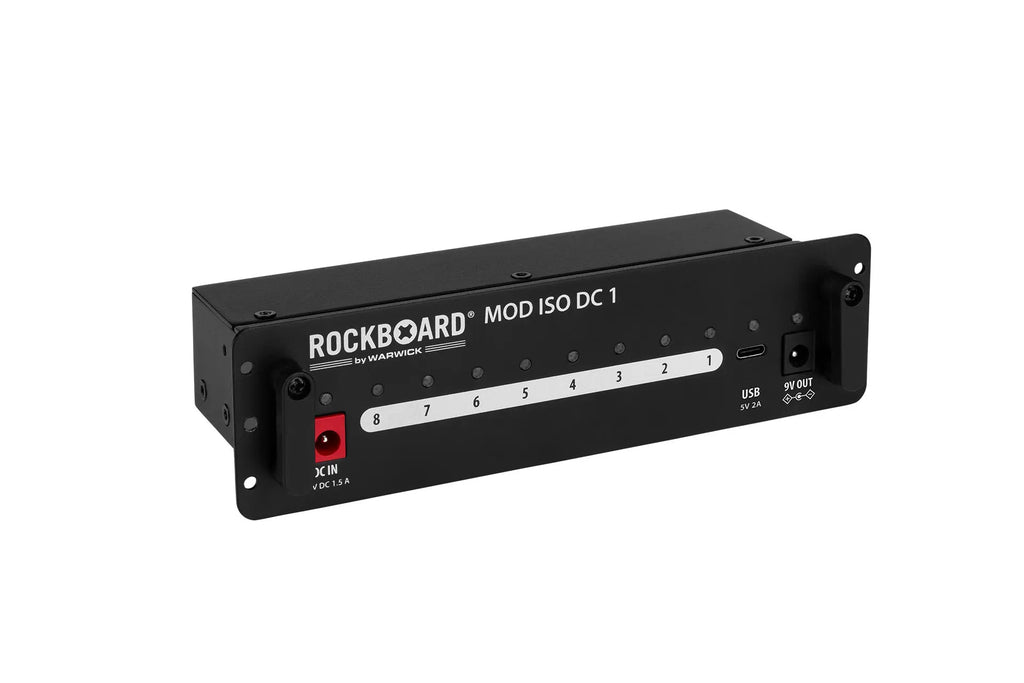

POWER MOD ISO DC 1
Multi power supply for effect pedals
The Power MOD ISO DC 1 is a multi power supply for effect pedals and provides up to 9 electrically isolated highly filtered 9 VDC power connections and one 5V USB connection.
It fits in a MOD slot on RockBoard pedalboards but due to its removable front plate it can also be used as a power supply for other pedalboards. The multi power supply is designed to provide noiseless power to up to 9 effect pedals simultaneously. Sophisticated filtering technology effectively eliminates high frequency noise. Separate short circuit protection for each power slot protects the connected effect pedals from damage in the event of a short circuit.
Separate LED indicate healthy connections for each slot. Should a short circuit occur only the affected power slot is switched off leaving the rest of the effects rig operational.
Details at a glance
Multi power supply for effects pedals
Provides transformer isolated and highly filtered power slots

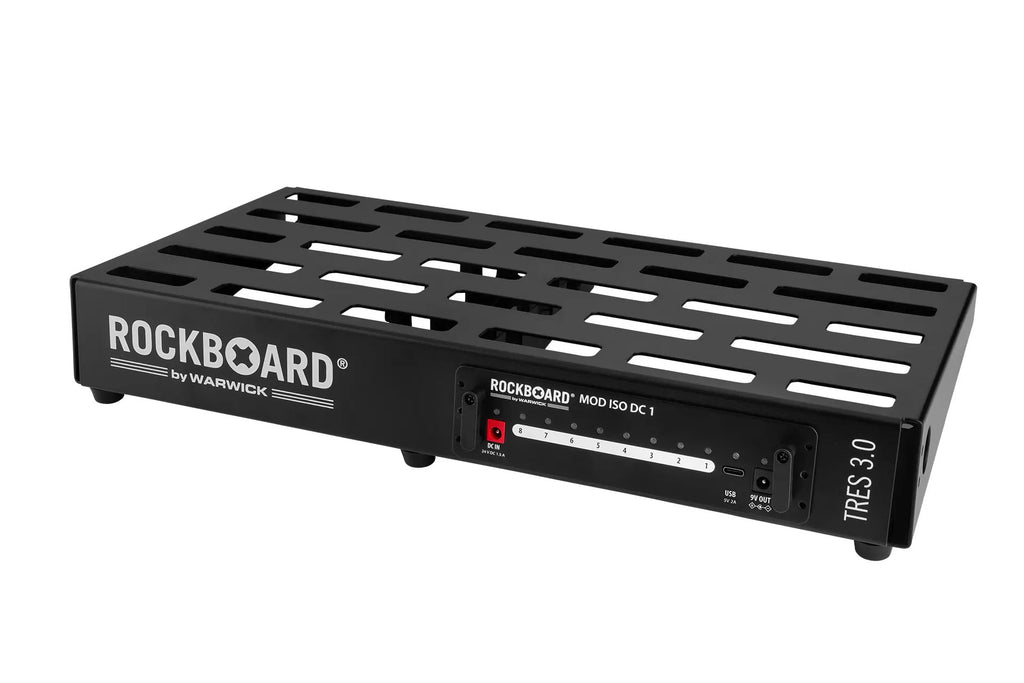

Fits in a MOD slot on RockBoard pedalboards
Compatible with most other pedalboards
Detachable front plate for mounting on top or underneath pedalboards
Advanced filter technology prevents high frequency noise
External mains transformer prevents low frequency interference
Input polarity protection
Individual status LEDs and short circuit protection for all power slots
2 strain relief clamps for connected cables
Input power 24 VDC 1.5 A

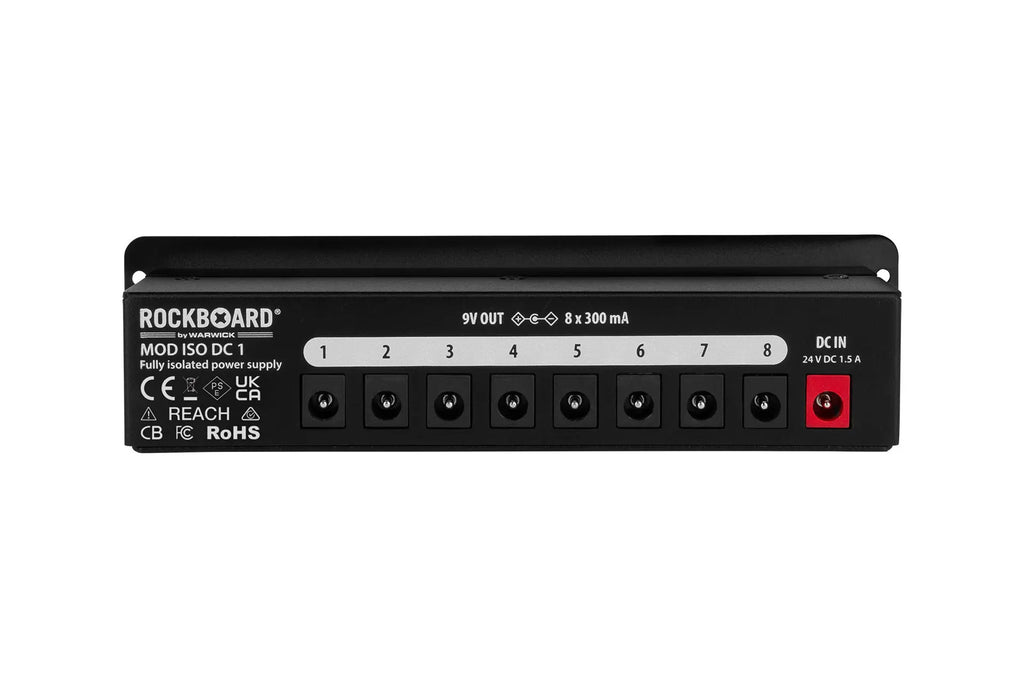

Outputs 8 x 9 VDC 300 mA each 1 x 9 VDC output 500 mA 1 x 5 VDC USB C 2000 mA

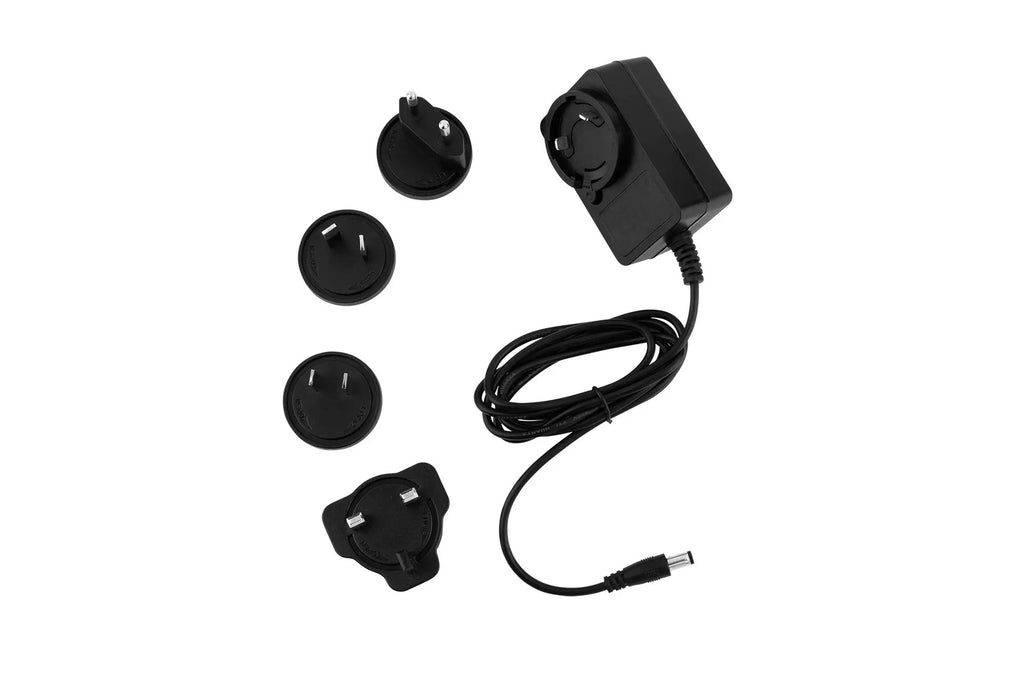

Incl 1 x 24 VDC power adapter 1.5 mA with exchangeable multi regional plug adapters EU UK US CA AU NZ input voltage 100 240V AC
Incl 9 x RockBoard Flat Power Cable 60 cm for connecting effects pedals
Dimensions L x W x H 175 x 85 x 47 mm 6.9 x 3.34 x 1.85 with front plate 160 x 85 x 33 mm 6.3 x 3.34 x 1.3 without front plate
Weight 500 g 1.1 lbs
