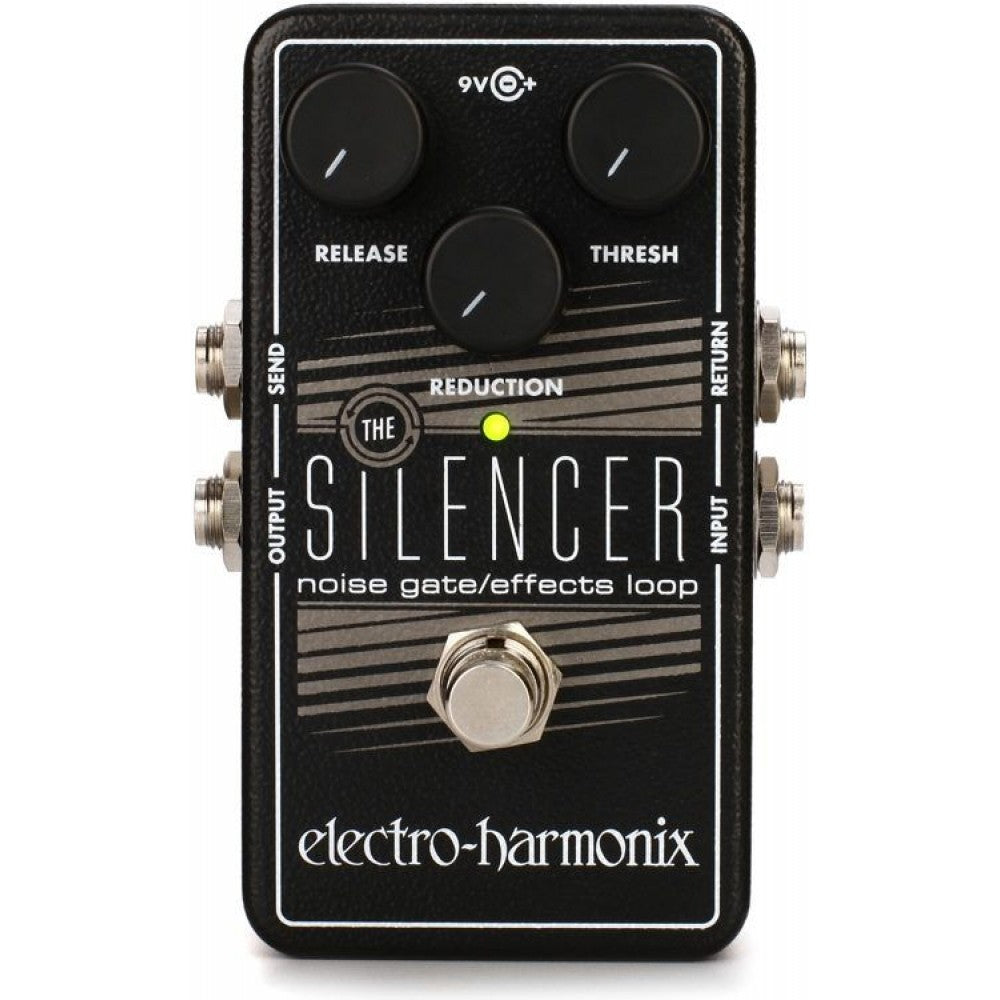

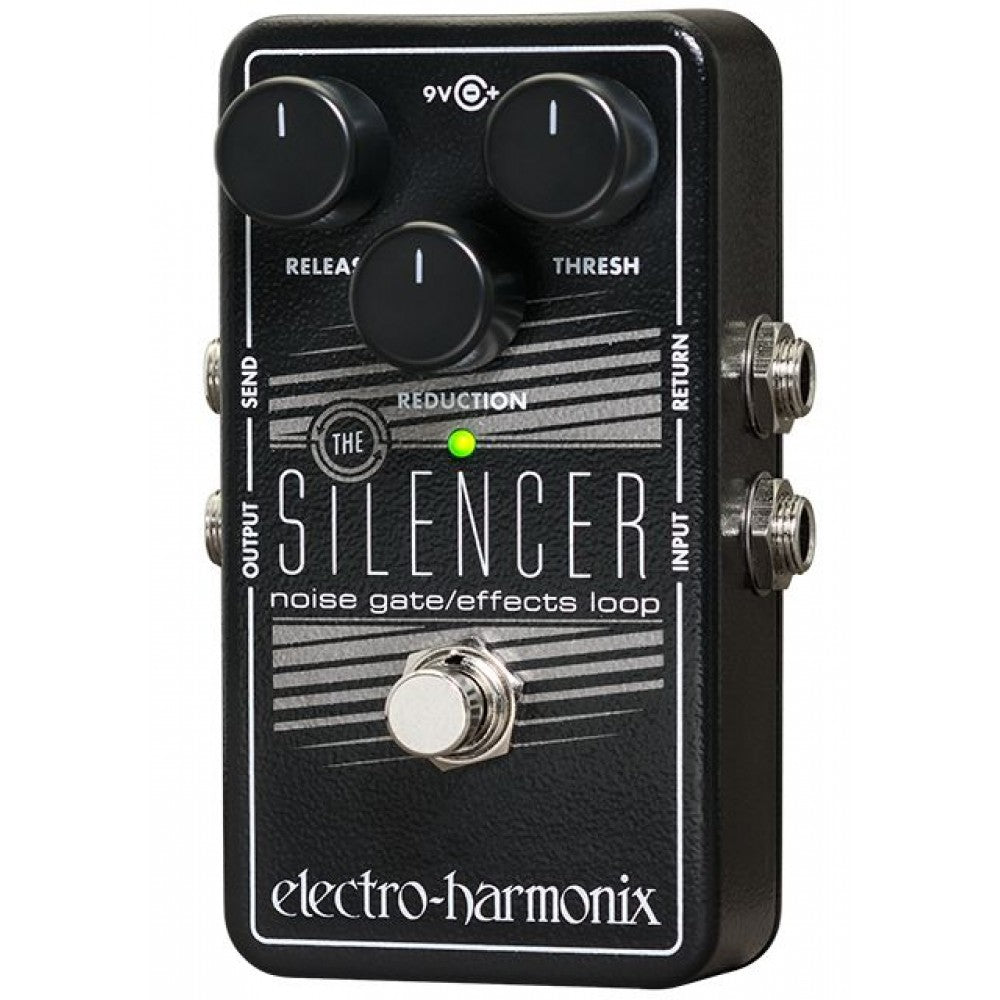

Electro-Harmonix The Silencer Noise Gate / Effects Loop Pedal

Silencer

A sophisticated noise gate that can tame a single pedal or an entire effects loop! The EHX Silencer’s three-control layout provides precise fine-tuning to fit your system, axe and playing style. Threshold adjusts how much level is required to open the noise gate and allow a signal to pass thru. Reduction regulated the degree to which the gated signal is reduced and is variable between -70dB and +4dB. Release controls how long the gate remains open after the signal drops below the Threshold. Release time is variable between 8ms and 4 seconds.

I/O includes ¼ inch Input, Output, Send and Return jacks. The footswitch selects whether The Silencer is engaged or in bypass mode; buffered bypass allows the effects loop to remain in your signal path when the gate is bypassed. A built-in AC jack accepts a standard power supply like the EHX 9.6DC unit (optional) and the pedal comes with a 9V battery.

Three controls for precise fine-tuning

Use it as an inline noise gate or to gate an entire effects loop

Delivers up to -70dB of noise reduction

Features 8ms to 4 seconds of release time

Buffered bypass

Compact design, rugged chassis

9V battery included

SPECIFICATIONS

Circuit

Analog

Bypass

Buffered Bypass

Audio

Mono

Effects Loop

Yes

Power Supply

9V battery included (optional 9.6VDC-200mA power adapter not included)

Dimensions (in)

4.5 x 2.75 x 2.1

Current Draw

22mA
