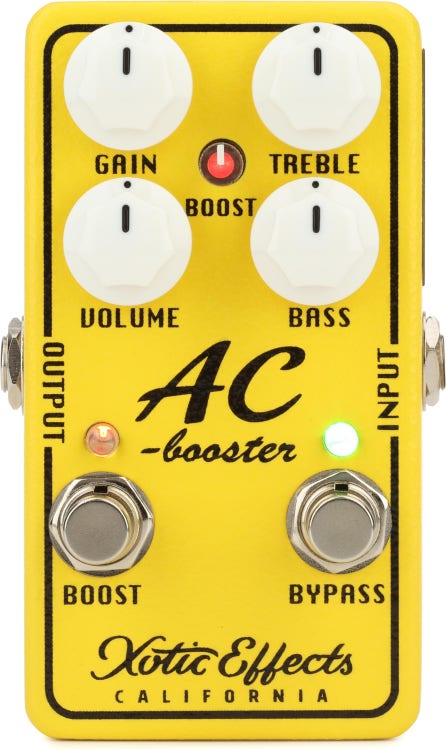

Xotic AC Booster V2 Overdrive Pedal

AC Booster V2

Reacting exactly like a great tube amp, the newly designed AC Booster V2 offers a wide range of overdrive with touch sensitivity just like the original AC Booster.

You can set it up to get a crunchy warm overdriven tone, and with just a little rolling off of the guitar’s volume, it will give you a great clean sound.

The Xotic voltage doubler is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).

Why use a voltage doubler? Higher voltage levels result in more headroom. When you boost the voltage, your Xotic pedals will get more dynamic response, more headroom, top end and brightness, and a less compressed sound.

Specifications

• Dimensions: 4.39" x 2.38" x 1.98" (110mm x 60mm x 50mm)

• Weight: 0.6 lbs (270g)

• True bypass switching

• Power consumption: 9VDC / 10mA (max)

• Battery life: approx. 40 hours continuous use with alkaline battery

• Battery type: 9VDC (006P) x 1

• AC adapter (optional): 9–18VDC negative tip (regulated only)

  • Compatible with Boss PSA, Dunlop Brick, Voodoo Labs

• Input impedance: 1M ohm

• Output impedance: 2K ohm

• Input jack nominal input: -20dBu

• Unplug when not in use for longer battery life

• DC jack: 2.1mm x 5.5mm, 9–18VDC, negative center, regulated only

• When using external power, the battery is disconnected

• Remove four screws from bottom plate to access battery
